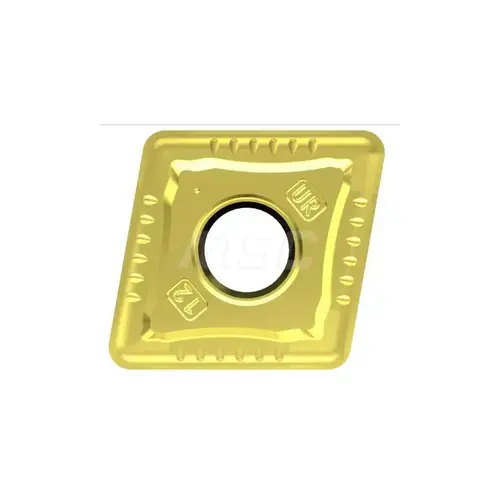

Turning Insert: CNMG120408-SR YG401, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

YG-1 22000945Click To Copy Turning Insert: CNMG120408-SR YG401, Solid Carbide

Item #: 22000945 by YG-1

See reviewsSee reviews
See reviews summary
In Stock

$18.14

/each
SAVE UP TO 1.81

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CNMG

Coating Process

PVD

Coating/Finish

TiAlSiN

Corner Radius (Decimal Inch)

0.0312

Manufacturers Catalog Number

22000945

Material Grade

S10

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1570

Multi-use Tool

No

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

-8

Full Radius

No

Insert Shape Code

C

Chip Breaker

SR

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Manufacturer Grade

YG401

Length Range (Decimal Inch)

0.5000 - 0.6000

Proprietary Coating Designation

Multilayer Coating

Iso Code

CNMG120408-SR

Product Overview
Turning Insert: CNMG120408-SR YG401, Solid Carbide TiAlSiN Coated, 0.472" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, Series CNMG
