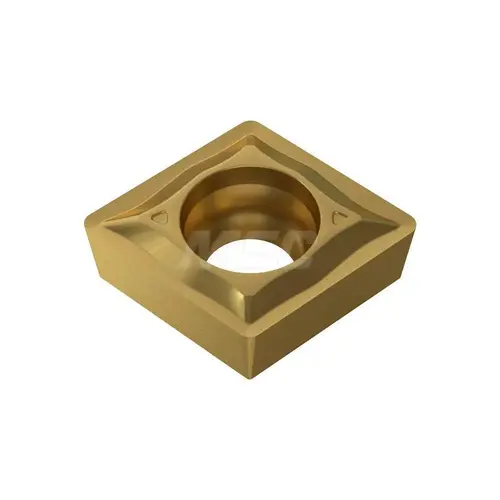

YG-1 22000006Click To Copy Turning Insert: CCMT060204-UF YG801, Solid Carbide
Item #: 22000006 by YG-1
See reviewsSee reviews
In Stock
$15.30
/eachSAVE UP TO 1.53
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Number of Cutting Edges
2
Standards
ANSI
Included Angle
80degree
Insert Material
Carbide
Series
CCMT
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0156
Manufacturers Catalog Number
22000006
Material Grade
P10
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.25
Width (Inch)
1/4
Coating Classification
PVD
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.2560
Insert Thickness (Decimal Inch)
0.0937
Insert Thickness (Inch)
3/32
Maximum Depth of Cut (Decimal Inch)
0.0790
Multi-use Tool
No
Rake
Positive
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.2500
Corner Radius (Inch)
1/64
Insert Shape
Diamond 80
Clearance Code
C
Rake Angle
10
Full Radius
No
Insert Shape Code
C
Chip Breaker
UF
Insert Style
CCMT
Insert Size Code
21.51
Tolerance Code
M
Relief Angle
7
Inscribed Circle (Inch)
1/4
Multi-Use Application
Turning
Manufacturer Grade
YG801
Length Range (Decimal Inch)
0.0000 - 0.3000
Iso Code
CCMT060204UF
Product Overview
Turning Insert: CCMT060204-UF YG801, Solid Carbide TiAlN Coated, 0.244" Long, 1/4" Inscribed Circle, 1/64" Corner Radius, Series CCMT
