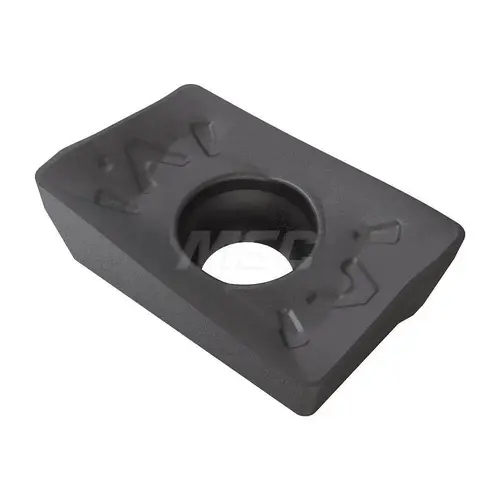

YG-1 12000005-XCP10Click To Copy Milling Insert: APKT100305PDTR-YG602 YG602, Solid Carbide - pack of 10
Item #: 12000005-XCP10 by YG-1
See reviewsSee reviews
In Stock
$173.36
/packageSAVE UP TO 17.34
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered
Material Application
Steel
ANSI Code
APKT100305PDTR-YG602
Number of Cutting Edges
2
Standards
ANSI
Insert Material
Solid Carbide
Series
APKT
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0197
Length (Decimal Inch - 4 Decimals)
0.3937
Manufacturers Catalog Number
APKT100305PDTR-YG602
Material Grade
P20
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1420
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.2640
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.3900
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.2640
Insert Shape
Parallelogram
Chip Breaker
Common
Insert Style
APKT
Insert Size Code
100305
Relief Angle
11.00
Included Angle Degree
85
Manufacturer Grade
YG602
Inscribed Circle Range (Decimal Inch)
0.2500 to 0.3000
Single or Double Sided Insert
Single
Cutter Series Compatibility
E90-AP
Length Range (Decimal Inch)
0.3200 to 0.4000
Thickness Range (Decimal Inch)
0.1250 to 0.1500
Iso Code
APKT100305PDTR-YG602
Product Overview
Milling Insert: APKT100305PDTR-YG602 YG602, Solid Carbide TiAlN Coated, 0.1420 " Thick, 0.2640" Wide
