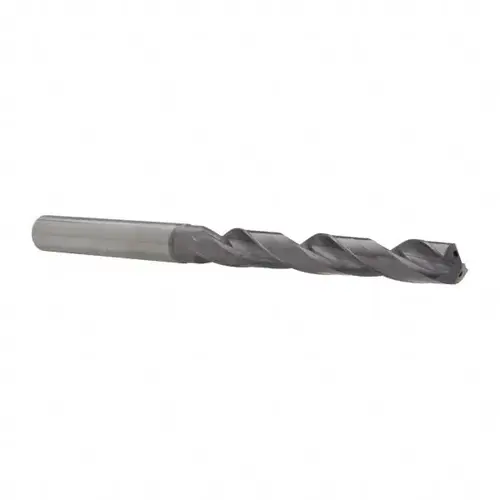

YG-1 0261CTFClick To Copy Jobber Drill: 13/32" Dia, 140 deg Point, Solid Carbide
Item #: 0261CTF by YG-1
See reviewsSee reviews
HURRY! Low in stock
$296.84
/eachSAVE UP TO 29.68
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Number of Flutes
2
Cutting Direction
Right Hand
Series
DH418
Point Type
Self Centering
Drill Bit Material
Solid Carbide
Spiral Type
Regular
Tool Application
Drilling
Coolant Through
Yes
Double Margin
No
Drill Bit Grade
General Purpose
Drill Bit Size (Decimal Inch)
0.4062
Drill Bit Size (Inch)
13/32
Drill Bit Size Range (Decimal Inch)
0.4000 - 0.5000
Drill Point Angle (Degrees)
140
Flute By Diameter Ratio
8xD
Flute Length (Decimal Inch)
3.3125
Flute Length (Inch)
3-5/16
Maximum Drilling Depth (Decimal Inch)
3.3125
Maximum Drilling Depth (Inch)
3-5/16
Number of Flats
0
Overall Length (Decimal Inch)
5.875
Overall Length (Inch)
5-7/8
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.4219
Shank Diameter (Inch)
27/64
Shank Length (Decimal Inch)
2.5625
Shank Length (Inch)
2-9/16
Tool Performance
General Purpose
UNSPSC Code
23241634
Vendor Drop Ship
N
Drill Bit Diameter Tolerance
h6
Web Configuration
Tapered
Web Thinning
R-Thinned
Product Overview
Jobber Drill: 13/32" Dia, 140 deg Point, Solid Carbide 5-7/8" OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series DH418
