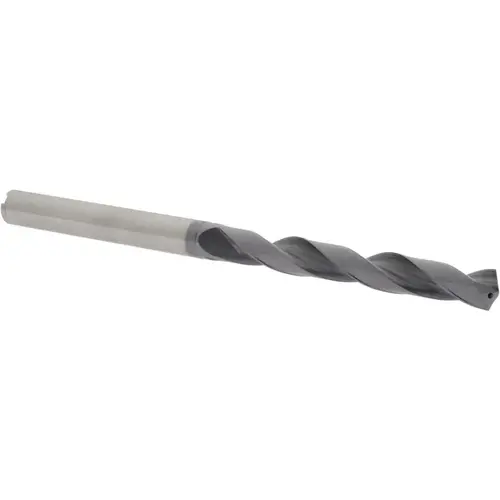

YG-1 0201CTFClick To Copy Jobber Length Drill Bit: 5/16" Dia, 140 degree, Solid Carbide
Item #: 0201CTF by YG-1
See reviewsSee reviews
In Stock
$185.73
/eachSAVE UP TO 18.57
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 37 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Number of Flutes
2
Cutting Direction
Right Hand
Series
DH418
Point Type
Self Centering
Drill Bit Material
Solid Carbide
Spiral Type
Regular
Tool Application
Drilling
Coolant Through
Yes
Double Margin
No
Drill Bit Grade
General Purpose
Drill Bit Size (Decimal Inch)
0.3125
Drill Bit Size (Inch)
5/16
Drill Bit Size Range (Decimal Inch)
0.3000 - 0.3500
Drill Point Angle (Degrees)
140
Flute By Diameter Ratio
8xD
Flute Length (Decimal Inch)
2.5156
Flute Length (Inch)
2-33/64
Maximum Drilling Depth (Decimal Inch)
2.5156
Maximum Drilling Depth (Inch)
2-33/64
Number of Flats
0
Overall Length (Decimal Inch)
4.6406in
Overall Length (Inch)
4-41/64in
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.3125
Shank Diameter (Inch)
5/16in
Shank Length (Decimal Inch)
2.1250in
Shank Length (Inch)
2-1/8in
Tool Performance
General Purpose
UNSPSC Code
23241634
Vendor Drop Ship
N
Drill Bit Diameter Tolerance
h6
Web Configuration
Tapered
Web Thinning
R-Thinned
Product Overview
Jobber Length Drill Bit: 5/16" Dia, 140 degree, Solid Carbide TiAlN Coated, 4-41/64" OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
