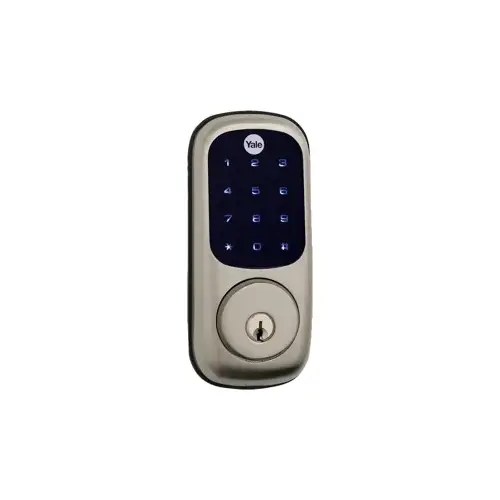

Yale Residential YRD226-ZW2-619-SCKD Assure Lock Touchscreen Deadbolt, Satin Nickel
Item #: YRD226-ZW2-619-SCKD by Yale
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Nickel
Grade
ANSI/BHMA Grade 2
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Keyway
Schlage C
Function
226-Touchscreen Deadbolt
Door Thickness
1-3/8" to 2-1/4"
Bore Size
2.1250
Cylinder Type
Conventional
Finish Description
Satin Nickel
Included Components
Keys; Battery Cover; (4) AA Batteries; Mounting Plate; Inside Lock; Mounting Hardware (Strike Plate, Adjustable Deadbolt, (2) Inside Lock Screws, (4) Strike Plate and Deadbolt Screws; (2) Security Strike Plate Screws, (2) Long Through Bolt)
Keyblank Grouping
YALR-SCHL-C-5-1
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Type
Touchscreen Lock
Series
YRD226 Series
Warranty
1 Year
Operating Temperature
Outside Temperature: -22 to 140°F; Inside Temperature: 5 to 158°F; Storage Temperature: -40 to 185°F
Color Code
619/US15
Product Height
Inner Trim: 6-7/8"; Outer Trim: 6-1/16"
Product Length
Inner Trim: 3"; Outer Trim: 2-3/4"
Product Width
Inner Trim: 2-1/8"; Outer Trim: 1-3/8"
ADA Compliant
No
Corner Type
Round
Finish Family
Satin Nickel
Keying Type
Keyed Different
Strike Size
1" x 2-1/4"
Low Battery Indicator
Yes
Standards
ANSI/BHMA A156.36 Grade 2
Front Size
1" x 2-1/4"
Battery Type
AA
Features
Dual Access Modes (PIN Code and Mechanical Key); Voice Guidance Feature; Automatic Locking; One Touch Locking; Forced Lock Modes; Low Battery Alarm; Optional Remote Control
Bolt Backset
2-3/8" or 2-3/4"
Manufacturer Parent
Assa Abloy
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
9.125x5.5x5.5"
Latchbolt Type
Adjustable Latch
Sub-Series
YRD226-ZW2-619-SCKD
Latch Throw
1 Inch
Alternate Part Number-1
157686
