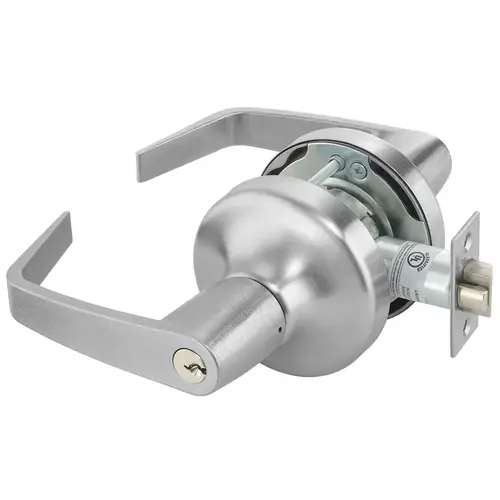

Yale Commercial AU-4707LN-626-2804Click To Copy 4700LN Lever Lock, Entry Satin Chrome

4700LN SeriesCylindrical Lever Locks

Yale® 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN Series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.

Features:

• Available in 19 functions, 3 lever designs, and 9 finishes

• Knurled lever designs available

• Freewheeling trim

• Available with Microshield® antimicrobial coating

Specifications: Door Thickness:

• 1-3/4" (44mm) to 2" (51mm); 1-3/8" (35mm) or 2-1/4" (57mm)

Strike:

• ANSI 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center

Backset:

• 2-3/4" (70mm)

Handing:

• Non-handed

Installation:

• ANSI/BHMA A156.115(-W)

ANSI/BHMA:

• Certified ANSI/BHMA A156.2, Series 4000 Grade 1

Warranty:

• 5 year

Application and Listings:

• UL – cUL listed for use on fire doors having a rating up to and including 3 hours

• Windstorm certified refer to local codes

• Meets accessibility guidelines for the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1

• Note: Any retrofit or other field modification to a fire-rated opening can potentially impact the fire-rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Finishes: 605:

• Bright Brass, Clear Coated

606*:

• Satin Bronze, Clear Coated

612:

• Satin Bronze, Clear Coated

613E:

• Dark Oxidized Satin Bronze - equivalent

625:

• Bright Chrome Plated

626**:

• Satin Chrome Plated

BSP:

• Black Suede Powder Coat

WSP:

• White Suede Powder Coat

• * Cylinders provided in these finishes only.
• ** Available with MicroShield®

• Note: Dark Oxidized Satin Bronze, Oil Rubbed (613) and Black Oxidized Bronze, Oil Rubbed (722) finishes are available by Special Product Application Request only. Contact customer service for more information.

• MicroShield®
  As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.
• MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
