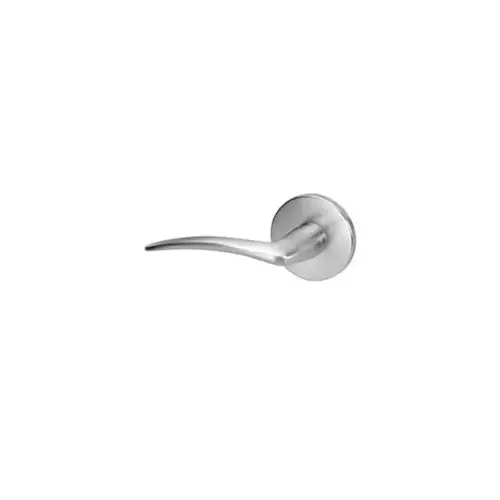

8890FL Mortise Electric Lockset, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Yale Commercial ARR-8890FL-626-24V-LC-LH 8890FL Mortise Electric Lockset, Satin Chrome

Item #: ARR-8890FL-626-24V-LC-LH by Yale Commercial

See reviewsSee reviews

$924.07

/each
SAVE UP TO 92.41

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Satin Chrome

Function

90FL-Electrified Fail Safe

Finish Description

Satin Chrome

Lever Style

AR-Arcadia

Rose/Escutcheon Trim

R-Rose

Product Type

Electronic Mortise Lock

Voltage

24 VDC

Grade

ANSI/BHMA Grade 1

Application

Offices; Shopping Centers; Industrial Buildings; Commercial Facilities

Hand

Left Hand

Backset

2-3/4 Inch

Handing

LH

Warranty

2 Year

Operating Temperature

-31 to 151°F

Color Code

626/US26D

Door Thickness

1-3/4 inch

Cylinder Type

Less Cylinder

Latch Throw

3/4 Inch

Strike Type

Curved Lip

ADA Compliant

YES

Finish Family

Satin Chrome

Hub Size

3/8 Inch

Lever Size

4-3/32 Inch

Hub Material

Solid Steel

Standards

ANSI/BHMA A156.13, Series 1000, Operational Grade 1; UL/cUL fire rated up to 3 hours

Case Dimensions

4-1/8" x 1" x 6-1/16"

Function Description

Power off Outside Lever Active; Power on Outside Lever Locked; Auxiliary Latch Deadlocks Latchbolt; Inside Lever Always Free; Mechanical Key Override by Outside When Locked

Front Size

8" x 1-1/4"

Function Family

Fail Safe

Peak Current

0.25A

Strike Lip

1-1/4 Inch

Product Projection

3-1/16 Inch

Rose/Escutcheon Width

2-9/16 Inch

Rose/Escutcheon Length

2-9/16 Inch

Electrified Features

24VDC at 0.25A

Features

Heavy-Duty Trim for Resistance Against Damage and Vandalism; Lock Installation is Made Easy with Quick Lever Handing

Series

Parts/Accessories

Manufacturer Parent

Assa Abloy

Monitor Switch Rating

2A at 30VDC; 3A at 125VAC

Latchbolt Type

Stainless Steel One-Piece Anti-Friction

Lever Style Family

Straight Curved Lever

Sub-Series

ARR-8890FL-626-24V-LC-LH

Strike Size

4-7/8" x 1-1/4"
