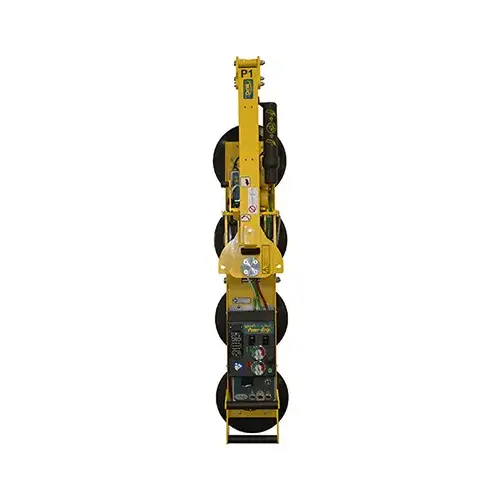

CRL P11104DC3Click To Copy Wood's Powr-Grip Single Channel DC Vacuum Lifting Frame with Intelli-Grip Technology for Flat Material

CRLChannel Lifters comprise one or more Pad Channels and interchangeable Lift Frames for manually rotating and tilting materials. These Vacuum Lifters may be ordered as complete units or as individual components to expand existing Channel Lifter systems. Lift Frames are available in single-channel or double-channel styles. Pad Channels can be switched from one frame to another in minutes.
Standard Vacuum Pad Spread:
51" x 12" (1295 x 305 mm)
Number/Size Of Vacuum Pads:
4/11" (280 mm) Diameter Lipped Vacuum Pads
Lifting Capacity:
700 Lb. (317 kg) On smooth, non-porous surfaces. Call for recommendations on other surfaces.
Average Weight of Vacuum Lifter:
95 lb. (44 kg)
Operating Power:
12V DC, 4.5 amp
Intelli-Grip Technology: Automatic self-testing ensures lifter is ready for use with every lift. Color display provides critically relevant information at a glance. Anticipates threats and alerts operator beforehand with clearly visible and audible warnings. Continuously monitors battery and prevents lifter from attaching to loads if energy is hazardously low. Multiple alarm levels plainly identify the severity of hazards.
Load Movement: Manual rotation, 180 degree edgewise, with automatic latching in three positions. Manual tilt, 90 degrees between upright and flat, with automatic latching in upright position. Lifter can be tilted ONLY when lift bar is locked in center position.
Standard Features:
Intelli-Grip Technology
Adjustable-position Lift Spool
Dual Vacuum System
High-flow Vacuum Pump
Battery and Charger
Low Vacuum Strobe Light
Low Vacuum/Power Loss Warning Buzzer
Green Lift Light
Vacuum Gauges
Vacuum Line Filters
Vacuum Reserve Tanks
Blow-off for Quick Release
Two-action, Push-button Release
Dual Vacuum System:
Features Two Completely Independent Vacuum Circuits
Provides Vacuum System Redundancy
Limits Possibility of a Catastrophic Failure
Reduces Chance of Harm to Personnel or Equipment
Available Options:
Remote Control System (Cat. No. 59906)
Shipping Case (Cat. No. 53005)
Alternative vacuum pads (Specifications not as listed above. Please contact us for more information):

9" (230 mm) Diameter Pad Cat. No. VPFS9

10" (250 mm) Diameter, Lipped Pad Cat. No. HV11

10" (250 mm) Diameter Concave Pad (Special Order)

10" (250 mm) Diameter Pad with Replaceable Sealing Ring (Special Order). Specifications not as listed above. Please contact us for more information.

Alternative pad compounds, including ones for low-marking, temperature resistant and coated surface applications (special order).

Counterbalance Lifter (Cat. No. CB2DCS)
Product Warning:
CRL offers large Power Lifting Frames on a weekly rental basis. Customers are responsible for all common carrier freight charges and may need to provide a security deposit. Usage time is based on a one week minimum and begins on the day the frame arrives at the customer. Rental billing ends on the day the frame is shipped back to the originating point. Billing is for full weeks only, no partial weeks.
NOTE: For details, availability and actual pricing please contact the Door and Window Department.
