The CRL Wood's Powr-Grip Manual Tilter 1000 is the most economical method of tilting Glass. The frame automatically locks into the upright position for transporting glass. Conveniently placed handle helps keep the operator in control of the load at all times. Only 4 seconds are required to apply full vacuum to the glass and 3 seconds to release. This Tilter also features 90 degree tilt, a high-flow vacuum system, and detachable control pendant to improve safety and ease of use when handling sheet materials. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Pad Spread:
49-1/4" x 99-1/4" (1.25 x 2.52 m)
Number/Size of Pads:
8/9" (229 mm) Diameter
Lifting Capacity: 1,000 Lbs. (455 kg)
Unit Weight: 170 Lbs. (78 kg)
Standard Operating Power:
120V AC, 60 Hz, 5 AMP
Apply: 4 sec. Release: 3 sec. (approx.)
Load Movement: Manual tilt, 90 degrees between upright and flat.
Standard Features:
Green Lift Light
Removable Control Pendant
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-Lock Electrical Plug
Multiple Handles for Easy Load Positioning
Blow-Off for Quick Release
Alternative Power Systems:
DC Power System CAT. NO. MT89DCS
Air (Venturi) Power System CAT. NO. MT89A1RS
Available Options:
Vacuum Loss Warning Buzzer CAT. NO. E03VLW
12V DC Vacuum Back-up System CAT. NO. E01DCB
Individual Pad Shutoffs CAT. NO. CM1C0WB
Movable Pad Mounts CAT. NO. CM2SCM
Voltage Adaptation CAT. NO. E06VA
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

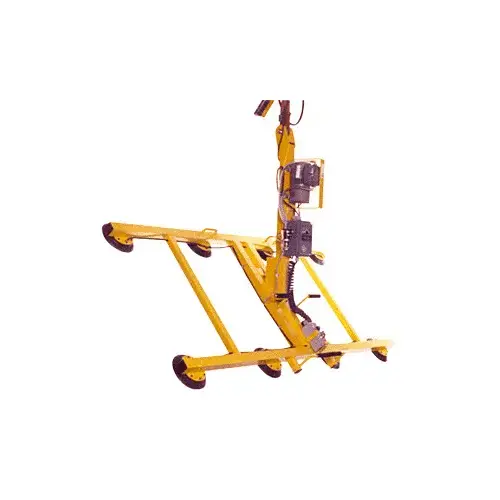

CRL MT89AC Wood's Powr-Grip Manual Tilter 1000
Item #: MT89AC by Wood's Powr-Grip
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1000 Lbs. (455 kg) Lifting Capacity
- Makes it a One Person Job of Transferring Glass Between Upright and Flat
- Reduces the Risk of Glass Damage
Lift Capacity
700 lb (319 kg)
Lifting Capacity
1000 lbs. (455 kg)
Pad Spread Size
49.25 X 99.25
Load Capacity
1000
F.O.B
Laurel, MT.
Load Movement
Brand
Wood's Powr-Grip
WARNING
This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Pad Quantity
8
Tilt Angle (Degrees)
90
Tilt Angle
90°
Product Overview
The CRL Wood's Powr-Grip Manual Tilter 1000 is the most economical method of tilting Glass. The frame automatically locks into the upright position for transporting glass. Conveniently placed handle helps keep the operator in control of the load at all times. Only 4 seconds are required to apply full vacuum to the glass and 3 seconds to release. This Tilter also features 90 degree tilt, a high-flow vacuum system, and detachable control pendant to improve safety and ease of use when handling sheet materials. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Pad Spread:
49-1/4" x 99-1/4" (1.25 x 2.52 m)
Number/Size of Pads:
8/9" (229 mm) Diameter
Lifting Capacity: 1,000 Lbs. (455 kg)
Unit Weight: 170 Lbs. (78 kg)
Standard Operating Power:
120V AC, 60 Hz, 5 AMP
Apply: 4 sec. Release: 3 sec. (approx.)
Load Movement: Manual tilt, 90 degrees between upright and flat.
Standard Features:
Green Lift Light
Removable Control Pendant
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-Lock Electrical Plug
Multiple Handles for Easy Load Positioning
Blow-Off for Quick Release
Alternative Power Systems:
Available Options:
