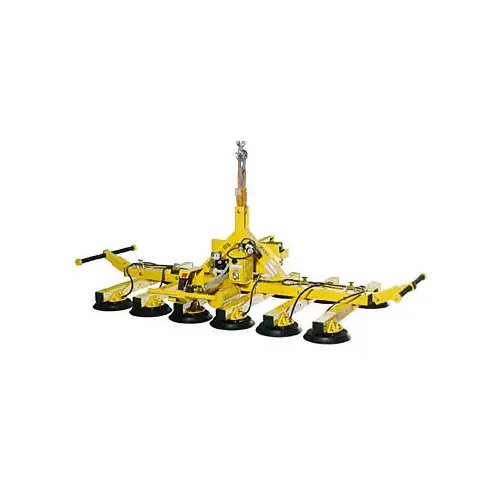

CRL Wood's Powr-Grip DC Powered Flat Lifter 3000 Series features an astounding 3000 pound (1360 kg) load capacity, making it the heavy-weight champ in Wood's Flat Lifter Series for materials handling. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Vacuum Pad Spread:
23" x 71" (584 mm x 1.80 m) (minimum)
43" x 71" (1.09 x 1.80 m) (maximum)
Number/Size of Vacuum Pads:
12/10" (254 mm) diameter lipped vacuum pads.
Load Capacity: 3000 pounds (1360 kg)
Standard Operating Power:
120 volts AC, 60 hertz, 11 amps (FL12HV11ACS)
Alternative Power Systems:
DC power system (FL12HV11DCS)
Air (venturi) power system (FL12HV11A1RS)
Unit Weight: 195 lbs. (89kg )
Apply: 4 sec. Release: 4 sec. (approx)
Load Movement:
Flat to flat
Standard Features:
Movable Vacuum Pad Mounts
Parking Stands/Control Handles
Twist-lock Electrical Plug
Spring-mounted Vacuum Pads
Green Lift Light
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge
Blow-off for Quick Release
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL FL12HV11DCS Wood's Powr-Grip DC Powered Flat Lifter 3000 Series
Item #: FL12HV11DCS by Wood's Powr-Grip
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 3000 lbs. (1360 kg) Lifting Capacity
- Twelve 10" (254 mm) Diameter Lipped Pads
Pad Spread Size
23" x 71" Min And 43" x 71" Max
Standard Pad Spread
23" x 71" (584 mm x 1.80 m), 43" x 71" (1.09 x 1.80 m)
F.O.B
Laurel, MT.
Brand
Wood's Powr-Grip
WARNING
This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Type
DC
Configuration
Flat Lifter
Pad Diameter
10
Style
3000 Series
Pad Quantity
12
Lifter Weight - DC Power (Pounds)
3000
Power
DC
Load Capacity
3000 lbs.(1361 kg)
Load Movement
Flat To Flat
Maximum Pad Spread
43 x 71 in. (1.09 x 1.80 m)
Minimum Pad Spread
23 x 71 in. (584 mm x 1.80 m)
Product Overview
CRL Wood's Powr-Grip DC Powered Flat Lifter 3000 Series features an astounding 3000 pound (1360 kg) load capacity, making it the heavy-weight champ in Wood's Flat Lifter Series for materials handling. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Vacuum Pad Spread:
23" x 71" (584 mm x 1.80 m) (minimum)
43" x 71" (1.09 x 1.80 m) (maximum)
Number/Size of Vacuum Pads:
12/10" (254 mm) diameter lipped vacuum pads.
Load Capacity: 3000 pounds (1360 kg)
Standard Operating Power:
120 volts AC, 60 hertz, 11 amps (FL12HV11ACS)
Alternative Power Systems:
DC power system (FL12HV11DCS)
Air (venturi) power system (FL12HV11A1RS)
Unit Weight: 195 lbs. (89kg )
Apply: 4 sec. Release: 4 sec. (approx)
Load Movement:
Flat to flat
Standard Features:
Movable Vacuum Pad Mounts
Parking Stands/Control Handles
Twist-lock Electrical Plug
Spring-mounted Vacuum Pads
Green Lift Light
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge
Blow-off for Quick Release
