Standard Variable Vacuum Pad Spread:
Min: 11" x 37" (279 x 940 mm)
Max: 11" x 59" (279 x 1499 mm)
Number/Size of Vacuum Pads:
2/10" (254 mm) diameter lipped vacuum pads.
Lifting Capacity:
600 pounds (270 kg)
Weight of Vacuum Lifter:
81 pounds (37 kg) with Air Power System (approx.)
120 pounds (55 kg) with AC Power System (approx.)
169 pounds (77 kg) with DC Power System (approx.)
Load Movement: Flat to Flat
Standard Features:
Movable Vacuum Pad Mounts
Spring-Mounted Vacuum Pads
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge
Available Power Systems:
Air Power Systems (Cat. No. FLEX2HV11A1R):
Standard Operating Power: Compressed Air, 5 SCFM (142 liters/min] @ 80-150 psi (550-1035 kPa)
Vacuum Pump: Single-stage venturi type, 3 SCFM (85 liters/min) nominal airflow
AC Power System (Cat. No. FLEX2HV11AC):
Standard Operating Power: 120 volts AC, 50/60 hertz, 6 amps
(240 volts AC, 50/60 hertz, 3 amps also available)
Vacuum Pump: Rotary vane type, 4 SCFM (113 liters/min) nominal airflow
Green lift light
Twist-lock electrical plug
Blow-off for quick release
DC Power System (FLEX2HV11DC):
Standard Operating Power: 12 volts DC, 21 amps
Vacuum Pump: Diaphragm type, 3 SCFM (85 liters/min) nominal airflow
On-board battery and charger
Battery energy gauge
Low vacuum warning light
Blow-off for quick release
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

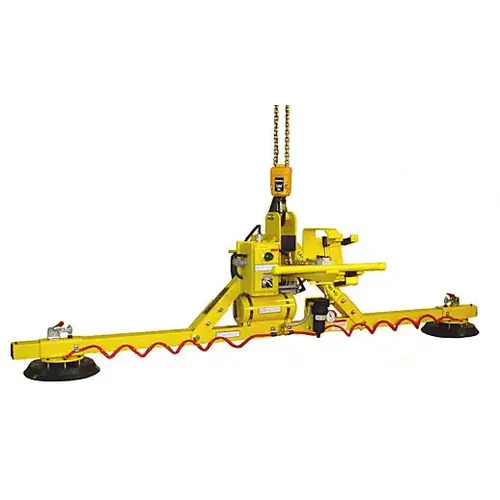

CRL FLEX2HV11AC Wood's Powr-Grip AC Powered 600 Series FLEX Flat Lifter
Item #: FLEX2HV11AC by Wood's Powr-Grip
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Lifting Capacity: 600 lbs. (270 kg)
- Two 10" (254 mm) Diameter Lipped Vacuum Pads
Brand
Wood's Powr-Grip
F.O.B
Laurel, MT.
Standard Pad Spread
11" x 37" (279 x 940 mm), 11" x 59" (279 x 1499 mm)
WARNING
This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Type
AC
Configuration
Flex Flat Lifter
Pad Diameter
10
Style
600 Series
Pad Spread Size
11 x 37 Min And 11 x 59 Max
Pad Quantity
2
Lifter Weight - AC Power (Pounds)
600
Power
AC
Load Capacity
600 lbs.(272 kg)
Load Movement
Flat To Flat
Maximum Pad Spread
11 x 59 in. (279 x 1499 mm)
Minimum Pad Spread
11 x 37 in. (279 x 940 mm)
Product Overview
CRL Wood's Powr-Grip AC Powered 600 Series FLEX Flat Lifter features a single beam with 2 movable vacuum pads and your choice of AC, DC or compressed air power. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Variable Vacuum Pad Spread:
Min: 11" x 37" (279 x 940 mm)
Max: 11" x 59" (279 x 1499 mm)
Number/Size of Vacuum Pads:
2/10" (254 mm) diameter lipped vacuum pads.
Lifting Capacity:
600 pounds (270 kg)
Weight of Vacuum Lifter:
81 pounds (37 kg) with Air Power System (approx.)
120 pounds (55 kg) with AC Power System (approx.)
169 pounds (77 kg) with DC Power System (approx.)
Load Movement: Flat to Flat
Standard Features:
Movable Vacuum Pad Mounts
Spring-Mounted Vacuum Pads
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge
Available Power Systems:
Air Power Systems (Cat. No. FLEX2HV11A1R):
Standard Operating Power: Compressed Air, 5 SCFM (142 liters/min] @ 80-150 psi (550-1035 kPa)
Vacuum Pump: Single-stage venturi type, 3 SCFM (85 liters/min) nominal airflow
AC Power System (Cat. No. FLEX2HV11AC):
Standard Operating Power: 120 volts AC, 50/60 hertz, 6 amps
(240 volts AC, 50/60 hertz, 3 amps also available)
Vacuum Pump: Rotary vane type, 4 SCFM (113 liters/min) nominal airflow
Green lift light
Twist-lock electrical plug
Blow-off for quick release
DC Power System (FLEX2HV11DC):
Standard Operating Power: 12 volts DC, 21 amps
Vacuum Pump: Diaphragm type, 3 SCFM (85 liters/min) nominal airflow
On-board battery and charger
Battery energy gauge
Low vacuum warning light
Blow-off for quick release
