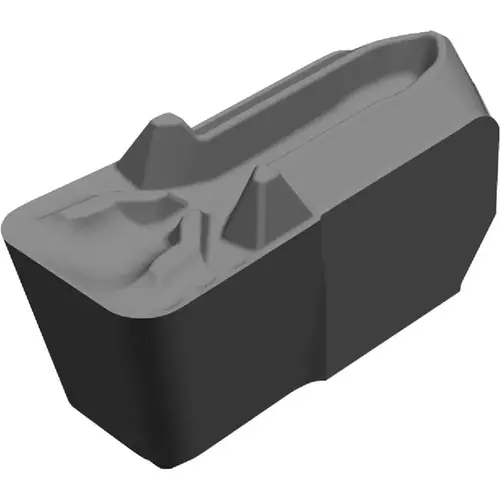

Grooving Inserts; Insert Style: WGC ; Insert Size Code: 3 ; Cutting Width (Decimal Inch): 0.125 ; Cutting Width (mm): 3.18 ; Insert Hand: Neutral ; Maximum Depth of Cut (Decimal Inch): 0.0882

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Widia 6686432Click To Copy Grooving Inserts; Insert Style: WGC ; Insert Size Code: 3 ; Cutting Width (Decimal Inch): 0.125 ; Cutting Width (mm): 3.18 ; Insert Hand: Neutral ; Maximum Depth of Cut (Decimal Inch): 0.0882

Item #: 6686432 by Widia

See reviewsSee reviews
See reviews summary
In Stock

$22.34

/each
SAVE UP TO 2.23

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

WG125I03P05PT

Number of Cutting Edges

1

Insert Thickness

4.01

Insert Material

Carbide

Series

WGC

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0079

Manufacturers Catalog Number

WG125I03P05PT

Overall Length (Decimal Inch)

0.3761

Overall Width (Decimal Inch - 4 Decimals)

0.1016

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Coating Classification

PVD

Cutting Width (Decimal Inch)

0.125

Cutting Width (Inch)

1/8

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1578

Lead Angle

10

Maximum Depth of Cut (Decimal Inch)

0.0882

Multi-use Tool

No

Overall Width (mm)

2.58

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Full Radius

No

Chip Breaker

PT

Secondary Workpiece Material Code

H

Insert Style

WGC

Insert Size Code

3

Relief Angle

10

Maximum Depth of Cut (mm)

2.24

Cutting Height (Decimal Inch)

0.0883

Maximum Groove Width (mm)

3.18

Manufacturer Grade

WU25PT

Minimum Groove Width (mm)

3.18

Corner Radius (mm)

0.20

Cutting Width (mm)

3.18

Iso Code

WG125I03P05PT

Cutting Height (mm)

2.24

Insert Height (Decimal Inch)

0.1578

Product Overview
Grooving Inserts; Insert Style: WGC ; Insert Size Code: 3 ; Cutting Width (Decimal Inch): 0.125 ; Cutting Width (mm): 3.18 ; Insert Hand: Neutral ; Maximum Depth of Cut (Decimal Inch): 0.0882
