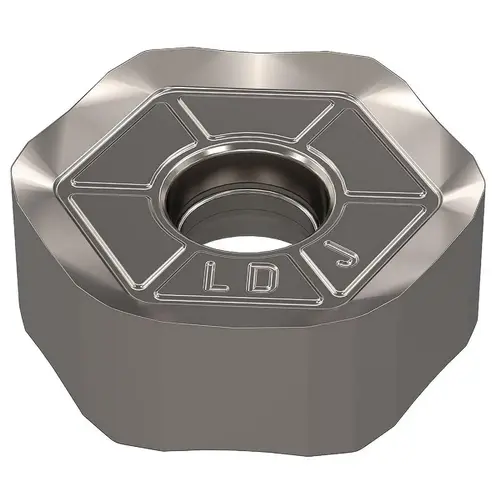

Widia 3865373Click To Copy Milling Insert: HNGJ0905ANFNLDJ, TN6501, Carbide Titanium Diboride
Item #: 3865373 by Widia
See reviewsSee reviews
In Stock
$39.92
/eachSAVE UP TO 3.99
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Series
M1200
Coating Process
PVD
Coating/Finish
Titanium Diboride
Corner Radius (Decimal Inch)
0.0469
Length (Decimal Inch - 4 Decimals)
0.6250
Length (Inch)
5/8
Manufacturers Catalog Number
HNGJ535ANFNLDJ
Material Grade
N03
Thickness (Decimal Inch - 4 Decimals)
0.2188
Thickness (Inch)
7/32
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.6250
Width (Inch)
5/8
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.3379
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Non-Ferrous Metal
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.6250
Corner Radius (Inch)
3/64
Insert Shape
Hexagon
Chip Breaker
LD
Secondary Workpiece Material Code
N
Insert Style
HNGJ
Insert Size Code
0905
Hole Diameter (Decimal Inch)
0.1969
Relief Angle
0.00
Included Angle Degree
120
Inscribed Circle (Inch)
5/8
Hole Diameter (Mm) ( - 0 Decimals)
0.20
Manufacturer Grade
TN6501
Single or Double Sided Insert
Double
Cutter Series Compatibility
M1200
Length Range (Decimal Inch)
0.6000 to 0.6500
Thickness Range (Decimal Inch)
0.2000 to 0.2200
Iso Code
HNGJ0905ANFNLDJ
Cutting Edge Style
Sharp
Material Application
Non-Ferrous Metal
ANSI Code
HNGJ535ANFNLDJ
Number of Cutting Edges
12
Standards
ANSI
Insert Material
Solid Carbide
Product Overview
Milling Insert: HNGJ0905ANFNLDJ, TN6501, Carbide TiB2 Coated, 7/32" Thick, 5/8 Wide
