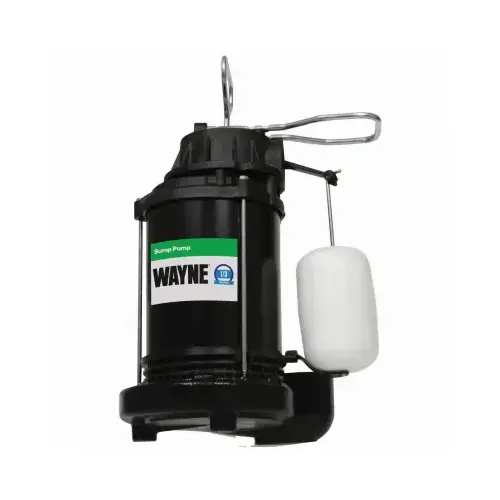

Wayne CDU790 Sump Pump, 1-Phase, 9.5 A, 120 V, 0.33 hp, 1-1/2 in Outlet, 20 ft Max Head, 1200 gph, Iron
Item #: CDU790 by WAYNE Water Systems
UPC #: 40066100016
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- HP Epoxy Coated and Cast Iron Submersible Sump Pump
- Submersible cast iron and coated steel sump pump with vertical float switch
- 9 in On level and 4 in off level
- 3 Year Limited Warranty
- 8 ft Water Resisitant Power Cord provides easy access to nearby GFCI protected outlet
- Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit
- Fully submersible
- Abrasion Resistant Glass Reinforced Polycarbonate Impeller for Reliability
- Assembled in the USA with foreign and domestic parts
- 1-1/2 in NPT discharge for standard plumbing installation
- Durable construction materials
- Cast Iron Seal Plate Prevents Leaks and Galvanic Corrosion
- 120 V, PSC, Oil-Filled _ HP Motor
- Maximum flow rate is 3800 gph and 2700 gph at 10 ft of discharge lift
- Vertical float switch for automatic operation
- Integrated Vertical Float Switch with Solid, Leak Free Polypropylene Float for automatic operation; 9 in. ON level and 4 in. OFF level
- Designed with Premium John Crane Carbon/Ceramic Shaft Seals for quality that las
- Top suction Design filters debris and prevents clogging
- Engineered with Upper and lower ball bearings, in sealed oil bath, for virtually silent operation
- Designed for easy installation without any plumbing changes
- Float Guard, Protects Switch from Hang-Ups from Debris and side of pit
- UL agency approved
- WAYNE Pumps' energy efficient motors, and engineered design provide the ultra-quiet experience you won't believe. The Hardest Working Pumps, You'll Never Hear™.
- Tested to 1 million cycles*; For performance that lasts, WAYNE Pumps exceeds an average life of 1 million cycles
- No need for weep holes; Unique Top Suction Design reduces clogging and prevents air lock condition
- High performance; max. flow rate is 5100 Gallons Per Hour; 3840 GPH at 10 ft. of discharge lift
- For easy installation, use in 11 in. diameter or larger sump basins.
- Durable epoxy-coated and rugged cast iron construction, for long life in tough sump pump applications
- 1-1/2 In. NPT Discharge for compliance with building codes
Country Origin Code
US
Hazardous Material
No
Width
10.00
Length
10.00
Height
14.00
Material
Iron
Dimensions
11-1/2 in H
Maximum Head
20 ft
Number of Phases
1
Frequency Rating
60 Hz
Cord Size
8 ft
Outlet Connection Size
1-1/2"
Temperature Rating
40 to 120 deg F
HP Rating
0.33 hp
Nomenclature
CDU790 SUMP PUMP 1/3HP
Current Rating
9.5 A
Voltage
115
Horsepower
1/3
Width (in)
10
Length (in)
10
Height (in)
14
Outlet Diameter (In.)
1-1/2
Product Overview
SUMP PUMP SUBMERSIBLE 1/3HP
Specifications:
Specifications:
Suitable for: 22 in H x 11 in Dia Basin Sumps
1/3 hp cast iron and coated steel submersible sump pump. Assembled in the US with foreign and domestic parts. Float switch tested to 1 million cycles. Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit. Epoxy-coated steel motor housing and rugged, cast iron pump base. Fully submersible. 1/3 hp, max flow rate is 3800 gph at 0 ft 1-1/2 in. NPT discharge. For use in 11 in. diameter or larger sump basins, 9 in ON level and 4 in OFF level.
