Non-Submersible Self-Priming Utility Pump, 1-Phase, 8 A, 120 V, 0.5 hp, 3/4 in Outlet, 1600 gph, Iron

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

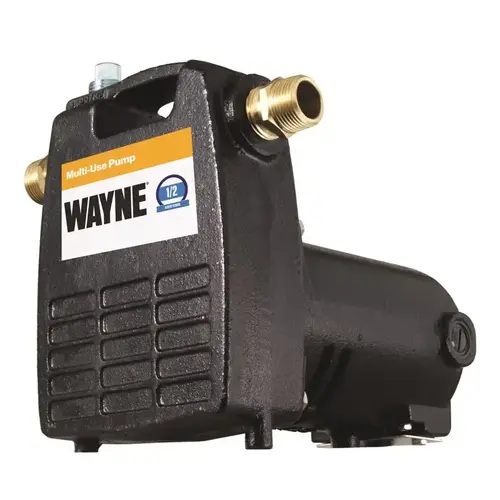

Wayne PC4 Non-Submersible Self-Priming Utility Pump, 1-Phase, 8 A, 120 V, 0.5 hp, 3/4 in Outlet, 1600 gph, Iron

Item #: PC4 by WAYNE Water Systems

UPC #: 040066100580

See reviewsSee reviews
In Stock

$272.60

/each
SAVE UP TO 27.26

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Portable Transfer Pump
  • Generates up to 50 psi at outlet hose; generates up to 15 ft of suction lift at inlet hose
  • Rugged, cast iron pump and motor housing
  • 3/4 in garden hose adapters at inlet and discharge
  • Removing water from flooded basements, draining hot water heaters, flushing water lines, charging polyglycol radiant heating lines

Product Type

Transfer Pump

Housing Material

Cast Iron

Velocity

N

Returnable

Yes

Pump Switch Type

Switchless Switch

On/Off Operations

Manual

Minimum Temperature

40 °F

Maximum Feet of Head

80 ft.

Maximum Discharge Flow

1600 gph

Hazardous Material

No

Each Weight

20.440 LB

Discharge Pipe Size

3/4"

Discharge Flow at 20 ft.

1500 gph

Discharge Flow at 15 ft.

1790 gph

Discharge Flow at 10 ft.

1600 gph

Defective Code

A

Corrosion Resistant

Yes

Agency Compliance

CSA and UL

Intake

Bottom

Hardware Included

Yes

Self Priming

Non-Self Priming

Maximum Temperature

110 °F

Powered By

AC

Horsepower

1/2 HP

Volts

115 V

Height

14.00

Alternative UPC

082901443520

Length

10.00

Width

10.00

ECCN

EAR99

Country Origin Code

US

Material

Iron

Cord Length

8 ft

Inlet Connection Size

3/4"

Number of Phases

1

Frequency Rating

60 Hz

Impeller Type

Thermoplastic

Outlet Connection Size

3/4"

HP Rating

0.5 hp

Maximum Liquid Temperature

120 deg F

Nomenclature

PC4 ELECT UTILITY PUMP 1/2HP

Discharge Head

80 ft

Current Rating

8 A

Depth

5.5"

Weight

12 lbs.

Warranty

1 year Limited Parts and Labor

Power Cord Size

8 ft.

Discharge Flow at 60 ft.

950 gph.

Discharge Flow at 40 ft.

1240 gph.

Discharge Flow at 80 ft.

600 gph.
