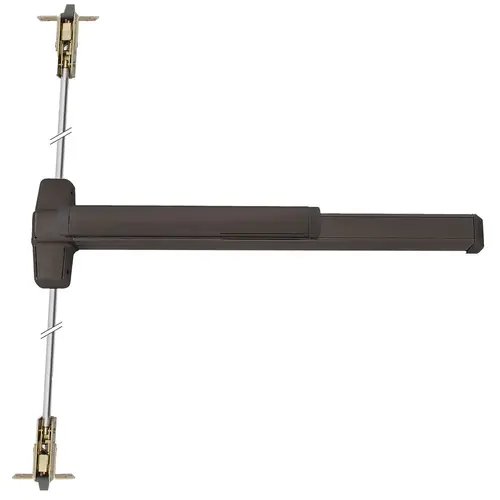

Delayed Egress Exit Device Aged Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Von Duprin CXA9947L-KC-18-F 3 643E RHR Delayed Egress Exit Device Aged Bronze

Item #: CXA9947L-KC-18-F 3 643E RHR by Von Duprin

See reviewsSee reviews

$5,008.42

/each
SAVE UP TO 500.84

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths:
    • 2' — 2' (610 mm) Door size
    • 3' — 2' 4' to 3' (711 mm to 914 mm) door size
    • 4' — 2' 10" to 4' (864 mm to 1219 mm) door size
  • Device centerline from finished floor:
    • 39-5/8" (1006 mm) Standard
    • Adjustable from 35-5/8" (905 mm) to 49-5/8" (1260 mm)
  • Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
  • Mechanism case dimensions: 2-1/4" x 2-1/4" (57 mm x 57 mm)
  • Projection:
    • Pushbar neutral — 3-13/16" (97 mm)
    • Pushbar depressed — 3-1/16" (78 mm)
  • Latch bolt: Deadlocking top & bottom bolt, 5/8" (16 mm) throw
  • Door undercut: 1/4" (7 mm) recommended
  • Top & bottom Latch case: 4-1/2" x 2-1/8" x 1-1/2" (114 mm x 54 mm x 38 mm)
  • Vertical rods:
    • Round 2-piece adjustable rods
    • Top rod adjustable from 6' 8" (2027 mm) to 8'4" (2533 mm).
    • Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm).
    • Extension rod kits available for doors over 8' 4" (2533 mm).
  • Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) to 2-1/4" (57 mm) thick metal doors. Optional 425 SNB available.

Handing

Right Hand Reverse

Color

Aged Bronze

Color Code

643E/US11E

Fire Rated

3 Hours {A}

Origin

USA

BAA Qualified

Yes

Product Overview

Grade 1 Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, Key Capture, 18 Lever with Escutcheon, Delayed Egress Device 15 Seconds, Less Dogging, Aged Bronze Finish, Right Hand Reverse

Von Duprin empowers its customers to embrace change by providing flexible solutions that can be modified over time, protecting your investment well into the future. Von Duprin 98/99 Series push pad devices have a universal center case design that is unique to the industry and provides superior flexibility from adding trim, switching handing or adding new retrofit options, you can configure numerous variations in the field without replacing your device.

Grade 1 exit devices available in an array of finishes.

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1 with a grooved case.
