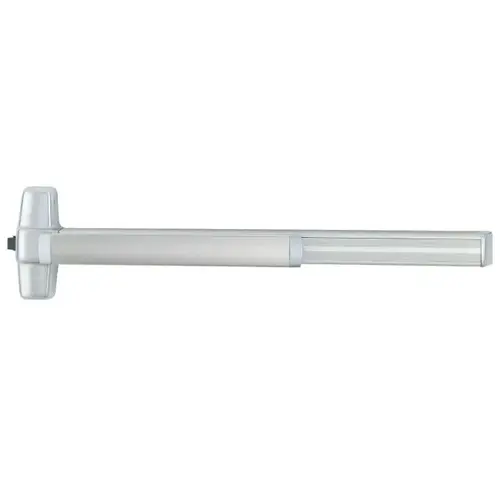

Von Duprin CXA-99EO-F-3FT-28 CXA-99-F CHEXIT Rim Fire Exit Device Satin Aluminum Clear

Item #: CXA-99EO-F-3FT-28 by Von Duprin

See reviewsSee reviews

$6,641.60

/each
SAVE UP TO 664.16

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Satin Aluminum Clear

Length

3

Handing

Non-Handed

Function

Exit Only

Device Length

36 Inch (3 Foot)

Stile

Wide Stile

Fire Rated

Yes

Finish Description

Satin Aluminum

Trim Options

EO Exit Only

Product Type

Electronic Exit Device/Trim

Series

99 Pushbar

Application

Single and Double Doors; Schools, Hospitals and Government Facilities

Bolt Throw

3/4"

ANSI Function

01

Device Type

Rim Device

Dogging Options

Electric Dogging

Latch Type

Deadlocking

Strike Type

299F Dull Black; 499F With Mullions

ADA Compliant

No

Finish Family

Aluminum

Included Components

Fasteners and Sex Bolts

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 10C; ANSI/UL 305; CAN/ULC-S104; CAN/ULC-S132

Trim Style

EO

Center Case Dimensions

8" x 2-3/4" x 2-3/8"

Device Bar Projection

3-13/16" Pushbar Neutral; 3-1/16" Pushbar Depressed

Device Rating

Fire Exit Hardware

Device Trim Function

Exit Only

Function Description

Exit Only - No Trim

For Door Thickness

1-3/4" to 2-1/4"

Device Centerline From Finished Floor

39-13/16"; 39-11/16"(With Mullion)

Function Family

Exit Only-No Trim

Device Trim ANSI Function

01

For Door Width

2 Foot 4" to 3 Foot

Electrified Features

Chexit Delayed Exit

Mechanism Case Dimensions

2-1/4" x 2-1/4"

Features

Modular Design Allows Ability to Upgrade Device to Keep Up With Changing Technology; 99 Series Has a Grooved Mechanism Case

Door Material

Wood; Metal

Manufacturer Parent

Allegion

Sub-Series

EDT_Electronic_Devices_Trim_von_duprin_3
