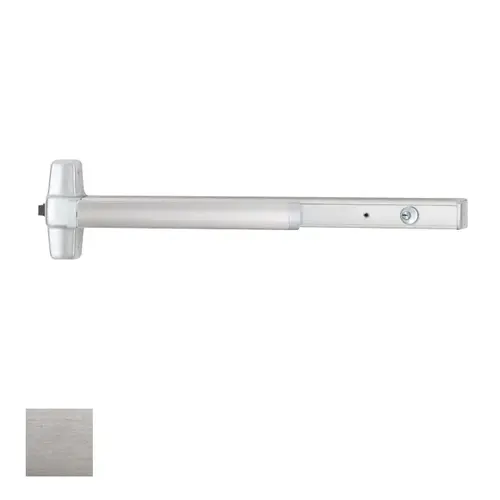

Von Duprin CXA-98EO-3FT-26D CXA98 CHEXIT Rim Exit Device Satin Chrome

Item #: CXA-98EO-3FT-26D by Von Duprin

See reviewsSee reviews
HURRY! Low in stock

$6,514.20

/each
SAVE UP TO 651.42

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Satin Chrome

Length

3

Handing

Non-Handed

Function

Exit Only

Device Length

36 Inch (3 Foot)

Stile

Wide Stile

Fire Rated

No

Finish Description

Satin Chrome

Device Type

Rim Device

Dogging Options

Hex Key Dogging

Trim Options

EO Exit Only

Product Type

Electronic Exit Device/Trim

Series

98 Pushbar

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC-S132

Trim Style

EO

Center Case Dimensions

8" x 2-3/4" x 2-3/8"

Device Bar Projection

3-13/16" Pushbar Neutral; 3-1/16" Pushbar Depressed

Device Rating

Panic Exit Hardware

Device Trim Function

Exit Only

Function Description

Exit Only - No Trim

For Door Thickness

1-3/4" to 2-1/4"

Device Centerline From Finished Floor

39-13/16"; 39-11/16"(With Mullion)

Function Family

Exit Only-No Trim

Device Trim ANSI Function

01

For Door Width

2 Foot 4" to 3 Foot

Electrified Features

Chexit Delayed Exit

Mechanism Case Dimensions

2-1/4" x 2-1/4"

Features

Modular Design Allows Ability to Upgrade Device to Keep Up With Changing Technology; 98 Series Device Has a Smooth Mechanism Case

Application

Single and Double Doors; Schools, Hospitals and Government Facilities

Color Code

626/US26D

Bolt Throw

3/4"

Latch Type

Deadlocking

Strike Type

299 Dull black

ADA Compliant

No

Finish Family

Satin Chrome

Included Components

Fasteners and Sex Bolts

ANSI Function

01

Door Material

Wood; Metal

Manufacturer Parent

Allegion

Sub-Series

CXA-98EO-3FT-26D
