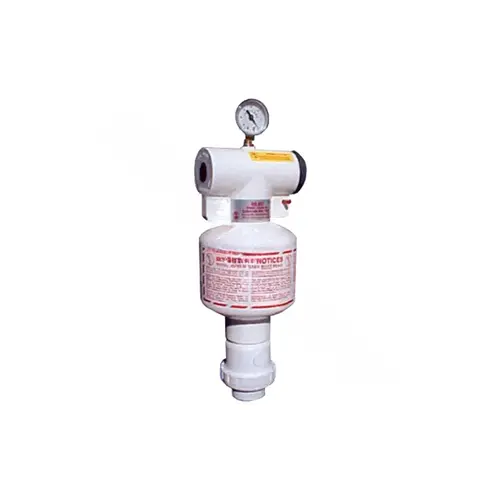

Vac-Alert VA-2000-L Safety Vacuum Release System

Item #: VA-2000-L by VAC-ALERT OF CALIFORNIA LLC

UPC #: 700358214806

See reviewsSee reviews

$803.81

/each
SAVE UP TO 80.38

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • SVRS unit also utilizes a check valve assembly equipped with a 3.5 pound spring, a poppet disc and a one-way (up only) vented poppet
  • This check valve assembly permits continued water flow to the circulating pump while the SVRS unit is in the open or vented position
  • The 3.5 pound spring further compressed by the poppet disc, creates enough sealing force within the check valve to allow partial water flow to the circulating pump for suction lifts up to 3.5 feet
  • This is critical to the elimination of circulating pump damage that can be caused by a sustained dry-running condition
  • The one-way vented poppet allows the surge chamber to be internally recharged when the circulating pump is turned off
  • SVRS is backed by a 3-Year limited warranty

Application

For suction lift applications, white (above water level)

Shipping Dimensions

8.50x8.00x20.50

Brand

Vac-Alert

Department

SAFETY

Item

Safety Vacuum Release System

StandardsApprovals

ANSI/ASME A112.19.17 Approved

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Commercial, Residential, or Professional

Commercial

Master Carton Quantity

6

Each Product Weight

7 pound

Minimum Sell Quantity

1

Product Overview
The Vac-Alert Model VA-2000L is a Safety Vacuum Release System (SVRS) designed for suction lift applications. Suction lift in this case applies to all applications where the circulating pump suction is either at or above the level of the pool water surface. This unit incorporates a 0.17 Inch diameter orifice opening installed below the surge tube section. This orifice opening is sized to prevent nuisance tripping of the SVRS unit caused by high vacuum surges typical of many pump start-up conditions
