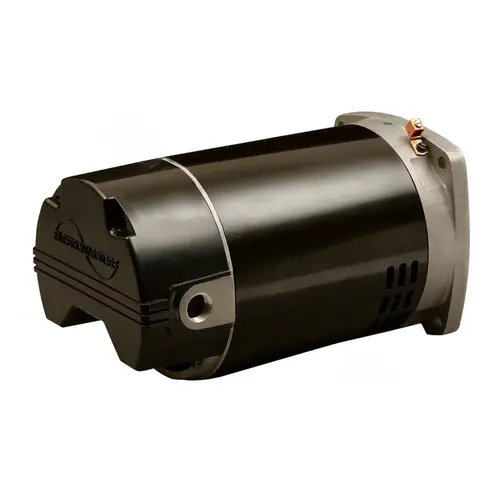

56y Frame Square Flange Open Drip Proof Pool & Spa Motor 3 Ph 3hp 208-230/460v

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

U.S. Motors EH755 56y Frame Square Flange Open Drip Proof Pool & Spa Motor 3 Ph 3hp 208-230/460v

Item #: EH755 by NIDEC MOTOR CORPORATION

UPC #: 786382074340

See reviewsSee reviews

$694.45

/each
SAVE UP TO 69.45

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Single compartment
  • Sealed ball bearings
  • Triple bearing protection

VoltageRating

208-230/460 V

DutyCycle

Continuous

Frame

56Y

FullLoadAmps

9.6 - 9.4/4.7 A

ServiceFactor

1.15

Brand

U.S. Motors

AmbientTemperature

50 deg C

RPM

3450

LengthLessShaft

12.04 Inch

ShaftDesign

Threaded

MotorShaftRotation

CW Lead End Rev

Phase

3

Department

PUMPS

ShaftMaterial

303 Stainless Steel

MountingType

Square Flange

InsulationClass

F

Type

FHP, Full Rated

ShaftDiameter

0.625 Inch

HPRating

3

FrequencyRating

60 Hz

NumberofSpeed

1

OverallLength

12.99 Inch

Item

Pool & Spa Motor

ShaftLength

0.406 Inch

Bearing Type

Sealed Ball

EnclosureDesign

Open Dripproof

FlangeType

Square

Shipping Dimensions

18.25x10.50x11.00

Voltage

208V,230V,460V

Shaft Diameter

0.625 inch

Application

Pool,Spa

Horsepower

3 horse power

Shaft Length

0.406 inch

Product Weight

41.33 pound

Bearing Type

Sealed Ball

Motor Enclosure Type

Open Drip Proof

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Flange Type

Square

Motor Speed

1-Speed

Shaft Material

303 Stainless Steel

Ambient temperature

50 degrees Celsius

Insulation Class

F

Service Factor

1.15

Commercial, Residential, or Professional

Commercial

Motor Frame Size

56Y

Each Product Weight

39.65 pound

RPMs Min

2850

Length Less Shaft

12.04 inch

Shaft Design

Threaded

RPMs Max

3450

Selling Package Depth

11

Frequency Rating (Hz)

50

Motor Shaft Rotation

Clockwise Lead End
