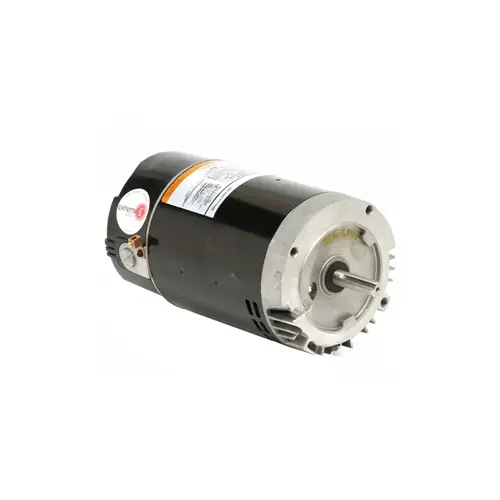

U.S. Motors ASB129 1 Speed Pool/spa Pump 56j Odp C-flange Motor 1.5hp 115/230v 60hz Black

Item #: ASB129 by NIDEC MOTOR CORPORATION

UPC #: 786382110710

See reviewsSee reviews

$481.56

/each
SAVE UP TO 48.16

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Two compartment
  • Shaft Threads - 7/16-20 UNF-2A
  • Triple Bearing Protection
  • 1081 design
  • Voltage selection device (Dual Voltage Only)
  • Full service factor

RPM

3450

Frame

56C

Type

FHP, Switchless Design, Full Rated

Shipping Dimensions

10.50x3.50x0.25

OverallLength

14.58 Inch

Phase

1

Department

PUMPS

Bearing Type

Sealed Ball

AmbientTemperature

50 deg C

FrequencyRating

60 Hz

FullLoadAmps

9/18 A

HPRating

1.5

Item

Pool & Spa Motor

MountingType

C-Face

SubBrand

Aqua-Shield

VoltageRating

230/115 V

EnclosureDesign

Open Dripproof

ShaftDesign

Keyed

InsulationClass

B

ShaftLength

1.875 Inch

ShaftMaterial

303 Stainless Steel

ShaftDiameter

0.625 Inch

DutyCycle

Continuous

MotorThermalProtection

Automatic Reset

EfficiencyGroup

Standard

LengthLessShaft

12.02 Inch

NumberofSpeed

1

ServiceFactor

1.3

MotorShaftRotation

CW

Voltage

115V,230V

Material

300 Stainless Steel

Shaft Diameter

0.625 inch

Application

Pool,Spa

Horsepower

1.5 horse power

Color

Black

Shaft Length

1.875 inch

Bearing Type

Sealed Ball

Motor Enclosure Type

Open Drip Proof

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Motor Speed

1-Speed

Shaft Material

303 Stainless Steel

Ambient temperature

50 degrees Celsius

Insulation Class

B

Service Factor

1.3

Motor Frame Size

56C

Each Product Weight

33.25 pound

RPMs Min

3450

Length Less Shaft

12.02 inch

Shaft Design

Keyed

RPMs Max

3450

Selling Package Depth

0.25

Amps Low Speed

9

Minimum Sell Quantity

1

Efficiency Group

Standard

Frequency Rating (Hz)

60

Motor Shaft Rotation

Clockwise

Amps High Speed

18

Motor Thermal Protection

Automatic Reset

Product Overview

Nidec ASB129 FHP Full Rated C-Face Pool & Spa Motor; Open Dripproof, 56C, 1-Speed, 1.5 HP, 230/115 V, 9/18 A, Keyed Shaft
