CRL-U.S. Aluminum CR41822Click To Copy Bronze Black Anodized Custom Single Series 400 Medium Stile Geared Hinge Entrance Door With Rim Device for Surface Mount Door Closer
Item #: CR41822 by US Aluminum
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Includes Standard Panic Pull, Hanging Hardware, Rim Panic Hardware, and One Cylinder
- Accommodates 1/4" (6 mm) Tempered Glass with the Option for 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
- 9-1/2" (241 mm) Bottom Rail is Installed to Comply with A.D.A.
- Custom Fabricated to Accept Optional Hardware Applications
Maximum Door Opening Size
48" (1.22 m) x 96" (2.44 m)
Minimum Door Opening Size
24" (610 mm) x 48" (1.22 m)
Base Door Opening Size
36" (914 mm) x 84" (2.13 m)
Finish
Bronze Black Anodized
Product Overview

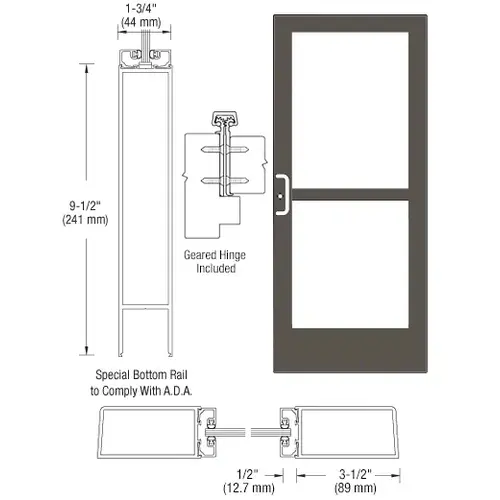

This Custom Medium Stile Entrance Door is built with 3-1/2" (89 mm) Stiles, 2-1/8" (54 mm) Top Rail, and 9-1/2" (241 mm) Bottom Rail. Standard features include stiles for Gear Hinge hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications. Important Notes: Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (914 mm) may not pass A.D.A. Inspection.
