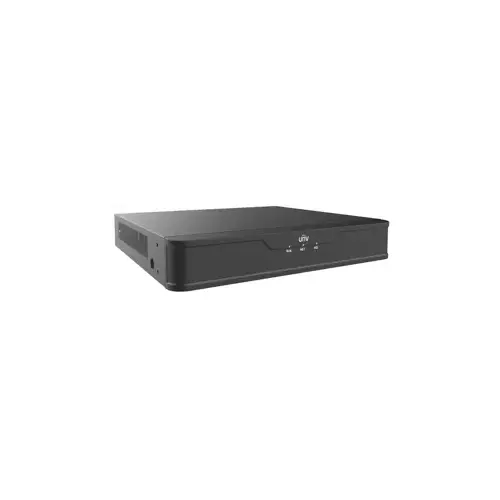

UniView Technology NVR301-04X-P4 Synchronous 4 Channel Network Video Recorder, 1 SATA Interface, 4 PoE Mini 1U, H.265 and 4K. No Hard Drive

Item #: NVR301-04X-P4 by UniView Technology

See reviews See reviews
In Stock

$329.00

/each
SAVE UP TO 32.90

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

178543

UNIVIEW Easy Series 4-channel Network Video Recorder (NVR301-04X-P4)

Uniview: NVR includes Easy, Prime and Pro series, which can be adapted to different application scenarios. UNV NVR has high quality genes to ensure the reliability of devices and the whole system, focusing on user experience to simplify every operation process.

Easy Series: With excellent usability, reliability and capability, Easy series offers a wonderful choice for distribution/retail market.

SPECIFICATIONS:

  • General:
    • Power Supply: 48V DC; Power Consumption: ≤ 9 W (without HDD).
    • Working Environment: - 10°C ~ + 55°C (+ 14°F ~ + 131°F), Humidity ≤ 90% RH (non-condensing).
    • Dimensions (WxDxH): 10.2"(260mm) x 9.4"(240mm) x 1.9"(47mm).
    • Weight (without HDD): 1kg (2.20 lb).
  • PoE:
    • Interface: (4) x RJ45 10M/100M self-adaptive Ethernet Interface.
    • Max Power: Max 30W for single port, Max 54W in total.
    • Supported Standard: IEEE 802.3at, IEEE 802.3af.
  • External Interface:
    • Network Interface: (1) RJ45 10M/100M self-adaptive Ethernet Interface.
    • USB Interface: Rear panel: (1) x USB2.0, (1) x USB3.0.
  • Hard Disk:
    • SATA: (1) x SATA interface.
    • Capacity: up to 6TB for each disk.
  • Decoding:
    • Decoding format: Ultra 265 / H.265 / H.264.
    • Liveview / Playback: 4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF.
    • Capability: (2) x 4k @ 30, (3) x 5MP @ 30, (4) x 4MP @ 30.
  • Video / Audio Output:
    • HDMI / VGA Output:
      • HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
      • VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
    • Recording Resolution: 4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF.
    • Audio Output: 1-ch, RCA.
    • Synchronous Playback: 4-ch.
    • Corridor Mode Screen: 3/4.
  • Network:
    • Incoming Bandwidth: 80Mbps.
    • Outgoing Bandwidth: 64Mbps.
    • Remote Users: 128.
    • Protocols: P2P, UPnP, NTP, DHCP, PPPoE.
  • Video / Audio Input:
    • IP Video Input: 4-ch.
    • Two-way Audio Input: 1-ch, RCA.

    FINISHES

    » N/A - Black
