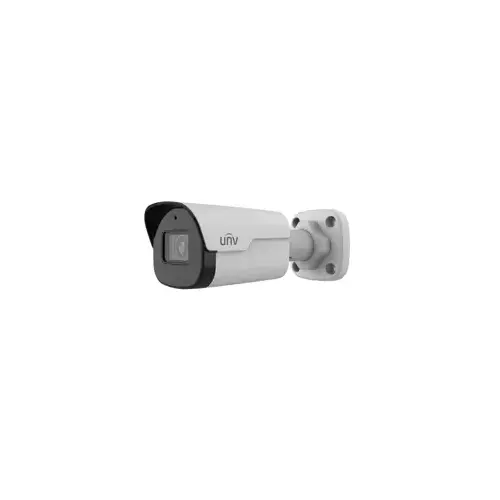

UniView Technology IPC2124SB-ADF28KM-I0 4MP HD LightHunter IR Fixed Bullet Network Camera, White

Item #: IPC2124SB-ADF28KM-I0 by UniView Technology

See reviews See reviews
In Stock

$299.00

/each
SAVE UP TO 29.90

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

178536

UNIVIEW 4MP HD LightHunter IR Fixed Bullet Network Camera (IPC2124SB-ADF28-KM-I0)

UNIVIEW LightHunter Technology: The LightHunter Technology is an innovative technology that delivers vivid color, appropriate brightness, and extremely clear images in ultra-low light. LightHunter Technology significantly improves the image brightness with F1.2 Large Iris design & BSI sensor. With the specially designed large size sensors, the IPCs have higher photosensitivity, and feature high SNR.

Application: LightHunter technology meets the surveillance requirements of users for high-quality image effects around the clock. The UNV LightHunter cameras can be used in schools, plazas, parking lots, shopping malls, airports, hotels, hospitals or any low-illumination scenes that users need.

FEATURES:

  • High quality image with 4MP, 1/3" CMOS sensor.
  • 4MP (2688 x 1520) @ 30/25fps; 4MP (2560 x 1440) @ 30/25fps; 3MP (2304 x 1296) @ 30/25fps; 2MP (1920 x 1080) @ 30/25fps.
  • Ultra 265, H.265, H.264, MJPEG.
  • LightHunter technology ensures ultra-high image quality in low illumination environment.
  • 120dB true WDR technology enables clear image in strong light scene.
  • Support 9:16 Corridor Mode.
  • Built-in Mic.
  • Smart IR, up to 40m (131ft) IR distance.
  • Supports 256 G Micro SD card.
  • IP67 protection.
  • Support PoE power supply.

    • SPECIFICATIONS:

  • General:
    • Power: DC 12V ± 25%, PoE (IEEE 802.3af) Power consumption: Max 4.0W.
    • Dimensions (L x W x H): 6.1"(155.9mm) x 2.5"(63.1mm) x 2.5"(62.7mm).
    • Net Weight: 0.42kg (0.93lb).
    • Material: Metal.
    • Working Environment: - 30°C ~ 60°C (- 22°F ~ 140°F), Humidity: ≤ 95% RH (non-condensing).
    • Surge Protection: 2KV.
    • Ingress Protection: IP67.
    • Reset Button: Supported.
  • Certifications:
    • CE: EN 60950-1.
    • UL: UL60950-1.
    • FCC: FCC Part 15.
  • Interface:
    • Network: (1) RJ45 10M/100M Base-TX Ethernet.
    • Built-in Mic: Supported.
  • Network:
    • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS.
    • Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API.
    • Client: EZStation; EZView; EZLive.
    • Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+.
  • Storage:
    • Edge Storage: Micro SD, up to 256GB.
    • Network Storage: ANR, NAS(NFS).
  • Audio:
    • Audio Compression: G.711.
    • Suppression: Supported.
    • Sampling Rate: 8KHZ.
  • Image:
    • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2.
    • Digital Noise Reduction: 2D/3D DNR.
    • Smart IR: Support.
    • Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise.
    • Dewarping: N/A.
    • HLC: Supported.
    • BLC: Supported.
  • Video:
    • Video Compression: Ultra 265, H.265, H.264, MJPEG.
    • H.264 code profile: Baseline profile, Main profile, High profile.
    • Frame Rate:
      • Main Stream: 4MP (2688 x 1520), Max 30fps;4MP (2560 x 1440), Max 30fps; 3MP (2304 x 1296), Max 30fps; 1080P (1920 x 1080), Max 30fps.
      • Sub Stream: 720P (1280 x 720), Max 30fps; D1 (720 x 576), Max 30fps; (640 x 360),Max 30fps;2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps.
      • Third Stream: D1 (720 x 576), Max 30fps; 640 x 360,Max 30fps; 2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps.
    • Video Bit Rate: 128 Kbps ~ 16 Mbps.
    • 9:16 Corridor Mode: Supported.
    • OSD: Up to 8 OSDs.
    • Privacy Mask: Up to 4 areas.
    • ROI: Up to 8 areas.
    • Motion Detection: Up to 4 areas.
  • Camera:
    • Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS.
    • Lens: 2.8mm @ F1.6.
    • Angle of View : (H) 101.1° (V) 55.3° (O) 111.1°.
    • Adjustment Angle: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°.
    • Shutter: Auto/Manual, 1 ~ 1/100000s.
    • Minimum Illumination: Colour: 0.0 03 Lux (F 1.6 , AGC) 0Lux with IR on.
    • Day/Night: IR-cut filter with auto switch (ICR).
    • S/N: > 56dB.
    • IR Range: Up to 40m (131 ft) IR range.
    • Wavelength: 850nm.
    • IR On/Off Control: Auto/Manual.
    • Defog: Digital Defog.
    • WDR: 120dB.

    FINISHES

    » N/A - White

    » BK - Black
