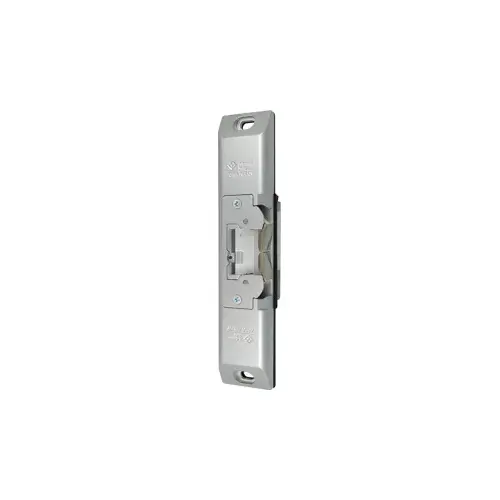

Adams Rite 74R1-130 74R1 Ultraline Electric Strike For Rim Exit Devices, Satin Aluminum
Item #: 74R1-130 by Adams Rite
UPC #: 888512104054
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Ultraline Electric Strike
- Fail-Safe/Fail-Secure: Field selectable at time of installation.
- Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
- Semi-Mortised Strike for Exit Devices
- Ultra Compact Design and Stainless Steel Split-Jaw with 2400 lbs of Holding Force
- Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
- Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
- Strikes Equipped With A Quick Connect Pug In Type Connector
- Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
- Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
- Voltage:
- Field selectable to match power source of 12, 16, or 24 VDC.
- 16 DC requires adapter (P/N VA 7400-16VDC)
- 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
Finish
Satin Aluminum
Use With
Rim Exit Devices
Color
Satin Aluminum Ritecoat Paint
Color Code
130
Function
Electric Strike
Amp Draw
.163A @ 12AC, .440A @ 12DC, .228A @ 16AC, .458A @ 16DC*, .084A @ 24AC, .230A @ 24DC
Faceplate Depth
11/16 In.
Faceplate Size
9 In. X 1-3/4 In.
Operating Voltage
12, 16, 24 VAC/DC
Package Qty
1
Switch Type
None
Finish Description
Satin Aluminum
Product Type
Electric Strike
Series
74R Series
Warranty
5 Year
Aluminium Bottle Contents
Swinging
ProductType
Manual
Voltage
24 VDC
For Use With
Rim Exit Devices
Application
Aluminum, Hollow Metal or Wood Applications
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
0.44A at 12VDC; 0.23A at 24VDC
Fire Rated
No
Latch Throw
3/4 Inch
ADA Compliant
No
Finish Family
Aluminum
Included Components
Mounting Plate Shims; Mounting Screws; Installation Instructions
Product Material
Stainless steel
Standards
ANSI/BHMA A156.18; ANSI/BHMA A156.31 Grade 1; UL 1034; UL 294; ULC-S319
Faceplate Dimension
1-3/4" x 9 x 11/16"
Case Dimensions
1-13/32" x 3-3/8" x 1-1/16"
Function Family
Electric Strike
Features
Designed for Rim Exit Devices With 3/4" Pullman Latchbolts; Preload is Pressure Exerted on Doors by Air Conditioning Systems, Warping or Misaligned Hardware Which can Disable Common Electric Strikes
Strike Opening
5/8" x 1-7/16" x 9/16"
Manufacturer Parent
Assa Abloy
Sub-Series
EAC_Electric_Strike_adams_rite_36
Grade
Grade 1
Handing
Non-Handed
Alternate Part Number-1
143034
Throw
3/4"
Faceplate Style
Surface 11/16 Thick
Compatibility, Lock Category
Rim Exit with Pullman Latch with no Deadlocking bolt
Fail Status
Field Selectable
Package Height
0.75"
Package Length
9"
Package Width
1.75"
Item Weight
2 lbs
