LCN 7982Click To Copy 7900 Series Control Box

79827900 Series Control Boxes

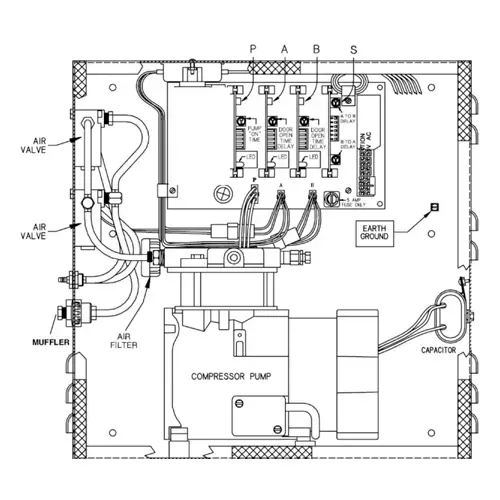

Heavy duty, surface mounted control box contains one or two electrically controlled pneumatic circuits. Air filtration, pneumatic regulation, and system timing is performed by the control box. 7980 Series control boxes also contain a built-in air pump to power the system. Each pneumatic circuit can be adjusted for a hold open time up to 30 seconds. Output air pressure can be adjusted to precisely tailor system to individual door requirements. Pneumatic connections use standard barbed fittings and 925 tubing from the compressor to the control box to the operator. A package of barbed tee and butt connectors are supplied with each control box to simplify installations. Consult LCN for details. Other than a semi-annual inspection of the air filter assembly and muffler, no periodic system maintenance is required.

Specifications:

• Self-contained control box/compressor combination for independent or simultaneous operation of two door leaves

• Two independent pneumatic circuit accepts Normally Open (N.O.) inputs from hardwired or RF (wireless) actuator/ receiver combinations

• The 7982 control box does not require a separate compressor.

• Sequential operation (add suffix "S") is available for 7982 control boxes
