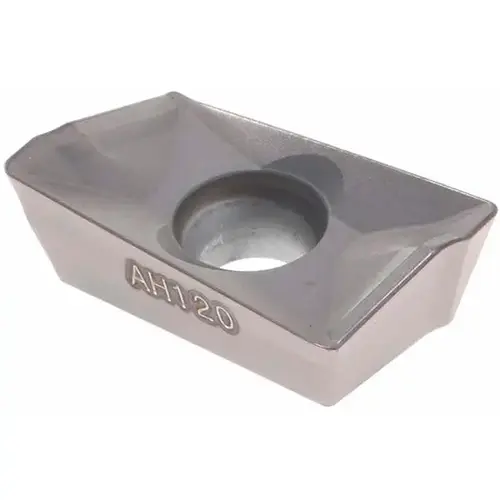

Milling Insert: ASMT170508PDPR-MJ, AH120, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6818307-XCP10Click To Copy Milling Insert: ASMT170508PDPR-MJ, AH120, Solid Carbide - pack of 10

Item #: 6818307-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$364.99

/package
SAVE UP TO 36.50

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Material Application

Steel

ANSI Code

ASMT170508PDPR-MJ AH120

Number of Cutting Edges

2

Standards

ISO

Insert Material

Solid Carbide

Series

ASMT

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Length (Decimal Inch - 4 Decimals)

0.7280

Manufacturers Catalog Number

ASMT170508PDPR-MJ

Material Grade

P15

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2200

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3860

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.6300

Multi-use Tool

No

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3860

Corner Radius (Inch)

1/32

Insert Shape

Parallelogram

Chip Breaker

MJ

Insert Style

ASMT

Insert Size Code

170508

Relief Angle

11.00

Included Angle Degree

85

Maximum Depth of Cut (mm)

16.00

Manufacturer Grade

AH120

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

EPS17

Length Range (Decimal Inch)

0.7000 to 0.9000

Thickness Range (Decimal Inch)

0.2200 to 0.2350

Iso Code

ASMT170508PDPR-MJ AH120

Product Overview
Milling Insert: ASMT170508PDPR-MJ, AH120, Solid Carbide Coated, 0.22" Thick, 0.386" Wide
