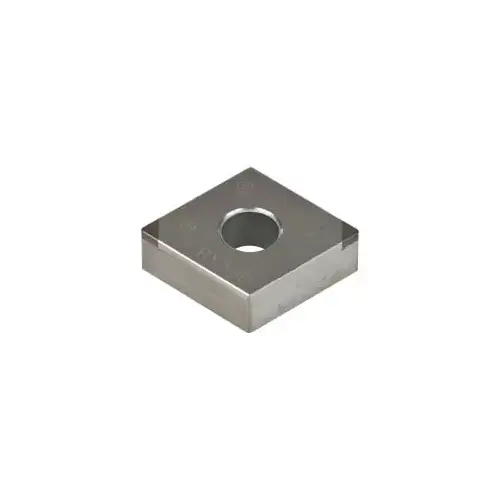

Turning Insert: 2QP-CNGA431 BX360, Polycrystalline Cubic Boron Nitride - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6817918-XCP10Click To Copy Turning Insert: 2QP-CNGA431 BX360, Polycrystalline Cubic Boron Nitride - pack of 10

Item #: 6817918-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary

$829.21

/package
SAVE UP TO 82.92

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80degree

Insert Material

Polycrystalline Cubic Boron Nitride (PCBN)

Series

2QP-CNM/GA

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

6817918

Material Grade

Medium Grain

Primary Workpiece Material

Hard Material

Primary Workpiece Material Code

H

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0197

Multi-use Tool

Yes

Rake

Negative

Tip Length (Decimal Inch)

0.0910

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/64

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

C

Chip Breaker

Flat Top

Insert Style

CNGA

Insert Size Code

431

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Manufacturer Grade

BX360

Single or Multi Tipped

Multi Tipped

Length Range (Decimal Inch)

0.5000 - 0.6000

Proprietary Coating Designation

Uncoated

Iso Code

CNGA 431

Product Overview
Turning Insert: 2QP-CNGA431 BX360, Polycrystalline Cubic Boron Nitride Uncoated, 0.091" Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series QP Mini-Tip
