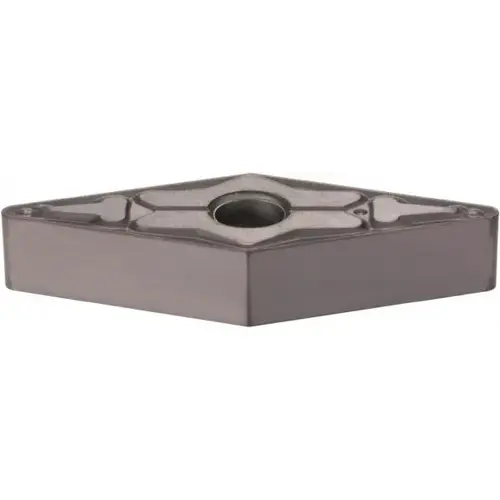

Turning Insert: VNMG160408TM AH120, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6812146Click To Copy Turning Insert: VNMG160408TM AH120, Solid Carbide TiAlN

Item #: 6812146 by Tungaloy

UPC #: 000016816671

See reviewsSee reviews
See reviews summary
In Stock

$34.15

/each
SAVE UP TO 3.41

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 133 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

4

Standards

ANSI

Insert Thickness

4.76

Included Angle

35degree

Insert Material

Carbide

Series

VNMG-TM

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

6812146

Material Grade

P15

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.3080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1969

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

16.60

Corner Radius (Inch)

1/32

Insert Shape

Diamond 35

Clearance Code

N

Rake Angle

-6

Full Radius

No

Insert Shape Code

V

Chip Breaker

TM

Insert Style

VNMG

Insert Size Code

332

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Maximum Depth of Cut (mm)

5.00

Manufacturer Grade

AH120

Length Range (Decimal Inch)

0.7000 - 10.0000

Iso Code

VNMG160408TM

Product Overview
Turning Insert: VNMG160408TM AH120, Solid Carbide Coated, 16.6 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 35 degree Diamond, Series VNMG
