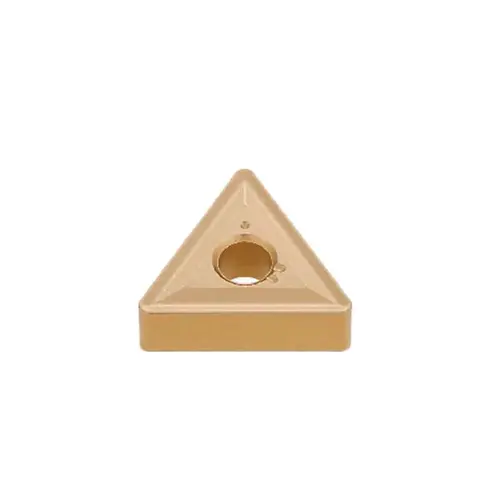

Turning Insert: TNMG543 AH120, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6808698-XCP10Click To Copy Turning Insert: TNMG543 AH120, Solid Carbide - pack of 10

Item #: 6808698-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$500.12

/package
SAVE UP TO 50.01

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.2500

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.2362

Iso Code

TNMG 543

Width (Decimal Inch - 4 Decimals)

1.0830in

Relief Angle

0

Cutting Edge Style

Chamfered & Honed

Clearance Code

N

Rake

Negative

Material Grade

P15

Insert Length (Decimal Inch)

1.0830

Insert Holding Method

Clamp

Coating/Finish

TiAlN

Rake Angle

-15

UNSPSC Code

23242105

Corner Radius (Inch)

3/64

Insert Style

TNMG

Manufacturers Catalog Number

6808698

Insert Hand

Neutral

Manufacturer Grade

AH120

Inscribed Circle (Inch)

5/8

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.6250

Coating Process

PVD

Primary Workpiece Material

Steel

Insert Shape Code

T

Corner Radius (Decimal Inch)

0.0472

Insert Thickness (Inch)

1/4

Hole Diameter (Decimal Inch)

0.2500

Chip Breaker

Common

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.7000 - 10.0000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

Coating Classification

PVD

Wiper Edge

No

Insert Size Code

543

Included Angle

60degree

Number of Cutting Edges

6

Series

TNMG

Insert Shape

Triangle

Primary Workpiece Material Code

P

Product Overview
Turning Insert: TNMG543 AH120, Solid Carbide TiAlN Coated, 1.083" Long, 5/8" Inscribed Circle, 3/64" Corner Radius, 60 degree Triangle, Series TNMG
