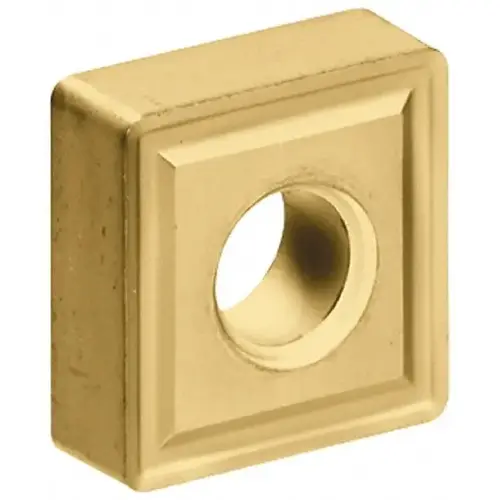

Tungaloy 6806765Click To Copy Turning Insert: SNMG432SA AH120, Solid Carbide TiAlN

Item #: 6806765 by Tungaloy

UPC #: 000016828483

See reviewsSee reviews
See reviews summary
In Stock

$26.27

/each
SAVE UP TO 2.63

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

8

Standards

ANSI

Included Angle

90degree

Insert Material

Carbide

Series

SNMG-SA

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

6806765

Material Grade

P15

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5000

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1575

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Square

Clearance Code

N

Rake Angle

-18

Full Radius

No

Insert Shape Code

S

Chip Breaker

SA

Insert Style

SNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Insert Length (Inch)

1/2

Manufacturer Grade

AH120

Length Range (Decimal Inch)

0.5000 - 0.6000

Iso Code

SNMG432

Product Overview
Turning Insert: SNMG432SA AH120, Solid Carbide TiAlN Coated, 1/2" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 90 degree Square, Series SNMG
