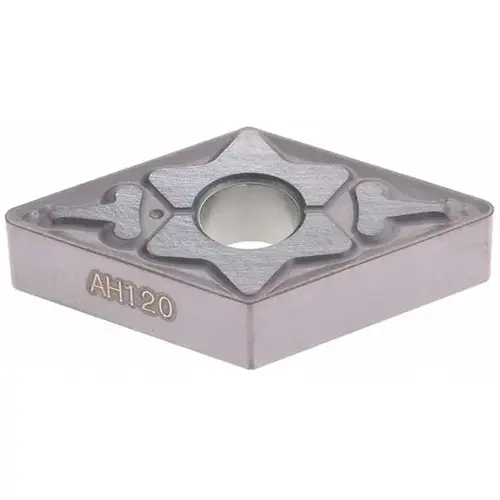

Turning Insert: DNMG432TM AH120, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6803421-XCP10Click To Copy Turning Insert: DNMG432TM AH120, Solid Carbide - pack of 10

Item #: 6803421-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary
In Stock

$345.61

/package
SAVE UP TO 34.56

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 46 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

4

Standards

ANSI

Included Angle

55

Insert Material

Carbide

Series

DNMG-TM

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

6803421

Material Grade

P15

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.2200

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1969

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

D - Diamond (Rhombic) 55-Deg

Clearance Code

N

Rake Angle

-6

Full Radius

No

Insert Shape Code

D

Chip Breaker

TM

Insert Style

DNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Chip Breaker Operation

Roughing

Manufacturer Grade

AH120

ISO Size Code

150408

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

432

ISO Insert Code

DNMG150408

Iso Code

DNMG 432 TM

ANSI Insert Code

DNMG432

Product Overview
Turning Insert: DNMG432TM AH120, Solid Carbide TiAlN Coated, 0.61" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series DNMG
