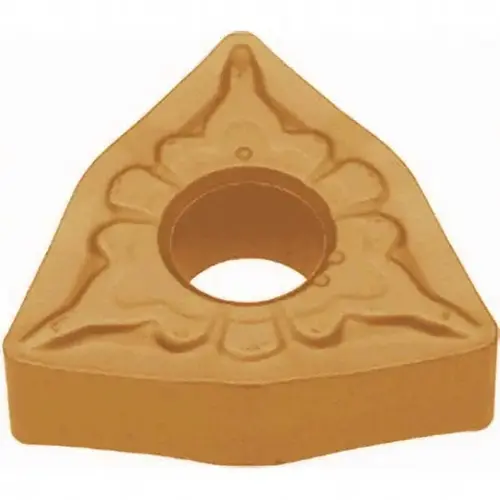

Turning Insert: WNMG 432 TS T9215, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6772380Click To Copy Turning Insert: WNMG 432 TS T9215, Solid Carbide TiCN

Item #: 6772380 by Tungaloy

See reviewsSee reviews
See reviews summary
In Stock

$17.80

/each
SAVE UP TO 1.78

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 14 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

6

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

WNMG-TS

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

6772380

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6860in

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6860

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0590

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Trigon

Clearance Code

N

Rake Angle

-10

Full Radius

No

Insert Shape Code

W

Chip Breaker

TS

Insert Style

WNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Manufacturer Grade

T9215

Length Range (Decimal Inch)

0.6500 - 0.7000

Proprietary Coating Designation

Multilayer Coating

Iso Code

WNMG 432 TS

Product Overview
Turning Insert: WNMG 432 TS T9215, Solid Carbide TiN, TiCN, Al2O3 & TiN Coated, Neutral, 0.343" Long, 1/2" Inscribed Circle, 0.0313" Corner Radius, 80 degree Trigon, Series T9200
