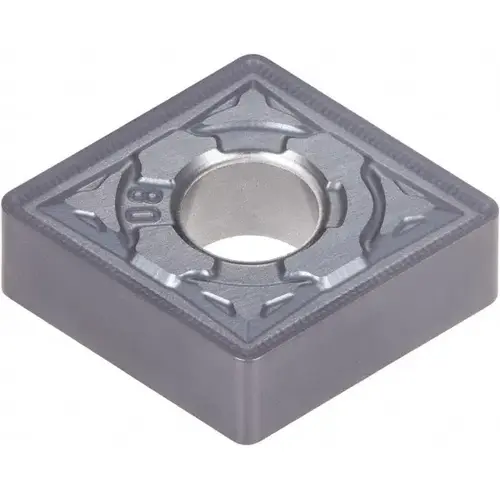

Turning Insert: CNMG1601612-HRM AH8015, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6741646-XCP10Click To Copy Turning Insert: CNMG1601612-HRM AH8015, Solid Carbide - pack of 10

Item #: 6741646-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary
In Stock

$429.59

/package
SAVE UP TO 42.96

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Insert Thickness

6.35

Included Angle

80degree

Insert Material

Carbide

Series

CNMG-HRM

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0472

Manufacturers Catalog Number

6741646

Material Grade

M10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6250in

Width (Inch)

5/8in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6340

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Maximum Depth of Cut (Decimal Inch)

0.1575

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.6250

Insert Length (mm)

16.10

Corner Radius (Inch)

3/64

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

-15

Full Radius

No

Insert Shape Code

C

Chip Breaker

HRM

Insert Style

CNMG

Insert Size Code

543

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2500

Relief Angle

0

Inscribed Circle (Inch)

5/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

6.35

Maximum Depth of Cut (mm)

4.00

Manufacturer Grade

AH8015

Length Range (Decimal Inch)

0.6000 - 0.6500

Inscribed Circle (mm)

15.88

Corner Radius (mm)

1.20

Iso Code

CNMG1601612-HRM

Product Overview
Turning Insert: CNMG1601612-HRM AH8015, Solid Carbide AlTiN Coated, 16.1 mm Long, 5/8" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series CNMG
