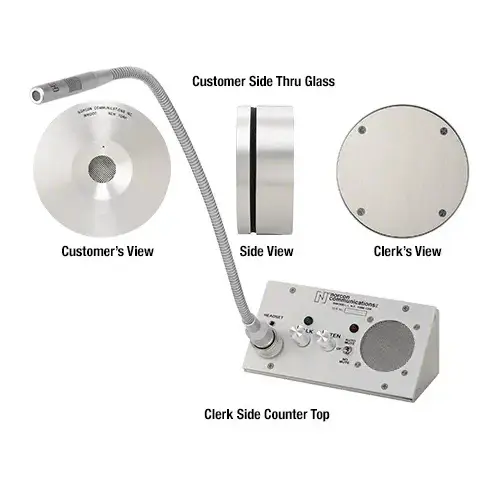

Satin Anodized 115V AC Combination Counter-Top/Thru-Glass Two-Way Electronic Communicator

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Norcon Communications TTU-7-X Satin Anodized 115V AC Combination Counter-Top/Thru-Glass Two-Way Electronic Communicator

Item #: TTU-7-X by Norcon Communications

See reviewsSee reviews
In Stock

$2,240.00

/each
SAVE UP TO 224.00

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote
Custom Configuration

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Compact and lightweight headset with a boom mic and a single speaker.
  • Promotes business by providing optimum sound quality.
  • Comes with an auto-mute function that blocks outside noise from disturbing the attendant.
  • Any individual with basic skills can install this device since there is no need to cut a hole in the barrier.
  • Supports wired and wireless headsets.
  • Includes sound-shaping circuitry for optimal performance and compression circuitry to lower harsh, loud sounds.

Exterior Thickness

1/2" (12.7 mm)

thru-glass unit diameter

5" (127 mm)

counter top unit width

6" (152 mm)

Shipping Weight

5 lb (2.27kg)

Depth

2-3/8

Height

2-3/8

Mounting Hardware Included

No

Microphone Inclued

Yes, Removable Mic

Mounting

Partition hole 3-4" di (3-1/2" recommended)

Type

Standard

Gooseneck Size

18"

Finish

Satin Anodized

Material

Aluminum

Weight

4 lbs

Glass Thickness

Up to 1/2"

Glass Size

Up To 1/2"

Audio Frequency Response

Selectively shaped for maximum voice intelligibility

Audio Power

2 Amplifiers (2 watts per amplifier)

Distortion

Less than 2%

Inside Assembly

6" (w) x 2-3/8" (h) x 2-3/8" (d)

Inside Control Housing

5" (di) x 1" (d)

Listen Mode

20 db compression

Microphones

Electret

Outside Assembly

5" (di) x 1/2" (d)

Power Supply Input

100-240 VAC

Power Supply Output

15 VDC, 1A

Talk Mode

Vox (voice activated)

Width

6

Glazing Thickness

1/4 To 1/2

Finish/Color

Satin Anodized

Power Supply Required

115V AC
