The CRL Norcon Bullet Resistant Thru-Glass Two-Way Electronic Communicator is a self-contained, easily installed device that allows clear, intelligible two-way conversation in locations where security must be maintained, with Level 3 ballistic protection. In its Auto-Mute mode the communicator is automatically activated when the clerk speaks for hands-free operation. You can select either the 115V AC model ("A" type), or the 12V DC battery powered model ("D" type). The new "X" Series models all have a removable gooseneck microphone.
The New "X" Series Norcon Communicators all have a removable gooseneck microphone. Both the "A" Type plug-in models and the "D" Type rechargeable battery models include a receptacle for use with the optional TTU1HS Hands-Free Headset. All Norcon units are supplied complete with mounting hardware, instructions, and power supply. The TTU1X Extension Kit for glass up to 2-3/4" (70 mm) thick may be ordered separately.
NOTE: Non-Bullet resistant models include bolts for glass up to 1/2" (12 mm) thick. Bullet resistant models are pre-set for glazing up to 1-11/16" thick.
SPECIFICATIONS:
Material: Aluminum
Finish: Satin Anodized
Bullet Resistance: Level 3
Instructions Included
Glass Fabrication: Requires 3" to 4" (76 to 102 mm) Hole for Installation
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

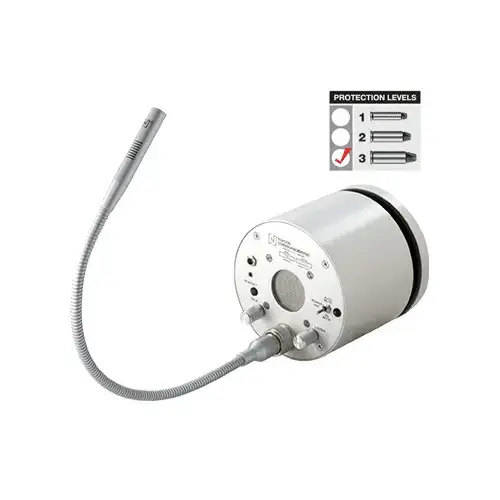

Norcon Communications TTU-1DB-X-L Satin Anodized 12V DC Protection Level 3 Bullet Resistant "X" Model Thru-Glass Two-Way Electronic Communicator
Item #: TTU-1DB-X-L by Norcon Communications
11 reviews
In Stock
$2,277.96
/eachSAVE UP TO 227.80
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Provides clear 2-way voice communication.
- Avoid shouting, repetitions, and misunderstandings.
- Automatically lowers outside ambient noise.
- Any individual with basic skills can install this low-maintenance product.
- Supports wireless as well as wired headsets.
- Bullet-resistant option is available with Kevlar UL level 3 ballistic rating.
Diameter
5
Finish
Satin Anodized
Shipping Weight
6 lb (2.72kg)
Material
Aluminum
Exterior Thickness
1/2" (12.7 mm)
Type
DC Power/ Bullet Proof
Weight
4 lbs
Glass Thickness
1/2"
Glass Size
1/2"
Bullet Resistance
Level 3
Useful Time (On Battery Unit)
10 to 12 Hours Per Charge
Gooseneck Size
18"
Audio Frequency Response
Selectively shaped for maximum voice intelligibility
Audio Power
2 Amplifier (2 watts per amplifier)
Battery
Nickel-cadmium
Battery Charge Time
6 hours
Battery Operation Time
10 hours
Distortion
Less than 2%
Inside Control Housing
5" (di) x 3-1/2" (d)
Listen Mode
20 db compression
Microphones
Electret
Outside Face Plate
5" (di) x 1/2" (d)
Power Supply Input
100-240 VAC
Power Supply Output
15 VDC, 1A
Talk Mode
Vox (voice activated)
Mounting
Partition hole 3-4" di (3-1/2" recommended)
Depth
4
Glazing Thickness
1-11/16
Protection Level
3
Finish/Color
Satin Anodized
Code Compliances
UL 752
Power Supply Required
12V DC
Product Overview
The CRL Norcon Bullet Resistant Thru-Glass Two-Way Electronic Communicator is a self-contained, easily installed device that allows clear, intelligible two-way conversation in locations where security must be maintained, with Level 3 ballistic protection. In its Auto-Mute mode the communicator is automatically activated when the clerk speaks for hands-free operation. You can select either the 115V AC model ("A" type), or the 12V DC battery powered model ("D" type). The new "X" Series models all have a removable gooseneck microphone.
The New "X" Series Norcon Communicators all have a removable gooseneck microphone. Both the "A" Type plug-in models and the "D" Type rechargeable battery models include a receptacle for use with the optional TTU1HS Hands-Free Headset. All Norcon units are supplied complete with mounting hardware, instructions, and power supply. The TTU1X Extension Kit for glass up to 2-3/4" (70 mm) thick may be ordered separately.
NOTE: Non-Bullet resistant models include bolts for glass up to 1/2" (12 mm) thick. Bullet resistant models are pre-set for glazing up to 1-11/16" thick.
SPECIFICATIONS:
Material: Aluminum
Finish: Satin Anodized
Bullet Resistance: Level 3
Instructions Included
Glass Fabrication: Requires 3" to 4" (76 to 102 mm) Hole for Installation
