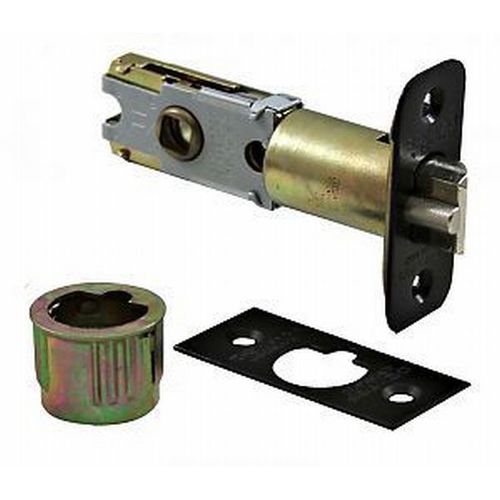

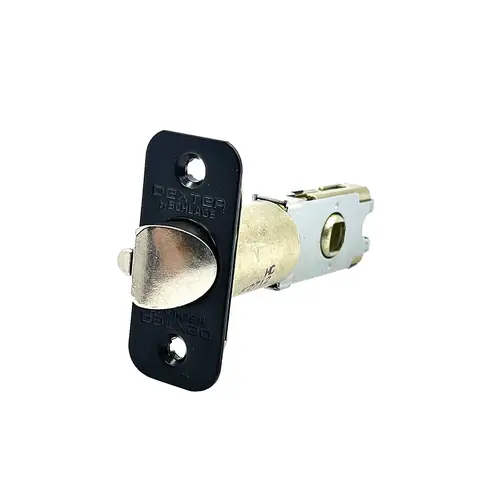

Schlage J Dexter Series 16255716 Triple Option Adjustable Deadlatch Aged Bronze Finish

J SeriesHandlesets

Your front door is more than just an entrance, it's also a showpiece – one of the first things a guest sees. That's why it’s important to choose the right handleset. Schlage offers a wide variety of designs and finishes, from angular to flowing, classic to contemporary, all designed to ensure that your front door is the perfect introduction to your home.

Available Functions: JH58 - Outside Handleset:

• Outside grip and deadbolt trim

JH59 - Inside Handleset:

• Inside trim, deadbolt thumbturn, latches, strikes & screws

JI58/59 - Keyed Entrance Lock (Interconnect):

• Deadbolt operated by key from outside or by turn unit from inside. Bolt automatically deadlocks when fully thrown
• Outside lever unlocked by key from outside when locked by turn-button in inside lever
• Turning inside lever retracts deadbolt and latch simultaneously for immediate exit
• Latch automatically deadlocks when door is closed
• UL Listed

JI18/19 - Passage Lock with Keyed Deadbolt (Interconnect):

• Deadbolt operated by key from outside or by turn unit from inside
• Bolt automatically deadlocks when fully thrown
• Latch retracted by lever from either side
• Turning inside lever retracts deadbolt and latch simultaneously for immediate exit
• UL Listed

Latches & Strikes: Latches:

• 16-258* - Triple Option Spring Latch -
  Round Corner + Square
• Corner + Drive-in + Dual Option Deadbolt Latch - Round
• Corner + Drive-in (16-068 + 16-070) - Standard
• *Sold seperately as 16-068 and 16-070

Strikes:

• 10-268* - Radius Full Lip + Radius Deadbolt
  (10-101 + 10-102 + 10-103) - STANDARD
• *Sold seperately as 10-101 and 10-102 and 10-103

Note:

• 1 standard spring latch is Triple Option
• 2 standard deadbolt latch is Dual Option 1/4” round faceplate and drive-in latch

Specifications: Certification:

• ANSI/BHMA A156.36-2010 Commercial Grade 3

Deadbolt:

• Dual Option: 1" x 2 1/4", 1/4" round corner and drive-in

Latch:

• round faceplates, drive-in latch, 1" housing diameter, 1" throw

Spring Latch:

• Triple Option: 1" x 2 1/4", 1/4" round faceplate, drive-in latch

Deadbolt Strike:

• 1" x 2 1/4", round corner and radius corner, full lip

Latch Strike:

• 1 5/8" x 2 1/4", radius corner, full lip

Backset:

• Adjustable for 2 3/8" or 2 3/4"

Cylinder:

• 5-pin, C keyway, keyed different (KD)

Door Range:

• 1 3/8" - 1 3/4"

Keys:

• Two brass cut keys per lock, 5-pin, C section

Finishes: 605:

• Bright Brass (US3)

609:

• Antique Brass (US5)

619:

• Satin Nickel (US15)

620:

• Antique Pewter (US15A)

622:

• Matte Black (US19)

625:

• Bright Chrome (US26)

626:

• Satin Chrome (US26D)

630:

• Satin Stainless Steel (US32D)

716:

• Aged Bronze

• *Non-standard finishes are not available
• Full-color swatch examples available on inside Handleset tab
