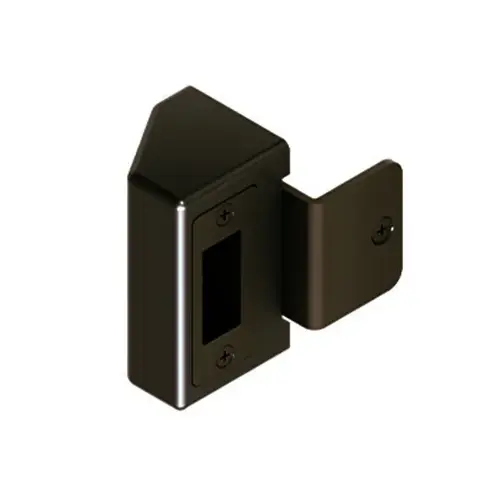

Trimco WS-1074-2-630E WS-1074 Wall Strike

WS SeriesWall Strike

Trimco's patented Wall Strike’s are uniquely designed as a solution for latching surface applied Sliding/Barn doors. For use with Trimco's 1074 Series ADA locks. The strike mounts to the wall either directly (requires blocking in wall) or via a mounting bracket that mounts to the jamb. Available in most architectural finishes to match the other hardware or with a primer finish that can be painted to match the wall color.

Features:

• Designedfor use with the Trimco's 1074 Series ADA Barn/Sliding Latchsets.

• Vertically adjustability ensures proper latching as the buildingor door opening settles.

• Concealed fasteners for sleek, modern appearance.

• Available in most architectural finishes, or primer to matchingwall paint color.

• Enables latching of surface sliding/barndoors

• Two mounting methods: Direct to wall (Requires blocking in the wall) or via Mounting Bracket.

Applications:

• Hospitality

• Multifamily & Mixed-Use

• Commercial & Industrial

• Office Buildings

WS-1074-1 Specifications: Description:

• Wall StrikeDirect Mount

For use with:

• 1074-1
• 1074-3

Lock Type:

• Tubular

Projection:

• 2"

WS-1074-2 Specifications: Description:

• Wall StrikeDirect Mount

For use with:

• 1074-2
• 1074-2E

Lock Type:

• Mortise

Projection:

• 2"

Finishes:

• 613E - Oil Rubbed Bronze (equivalent)
• 622 - Matte Black Powder Coat
• 625 - Polished Chrome
• 630E - Stainless Steel (equivalent)
• 600W - White Primer Coat
