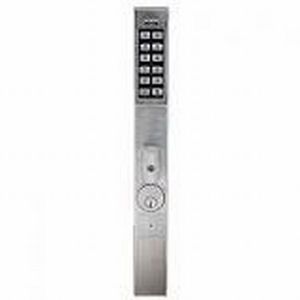

DL1225 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Turnpiece Exit Trim Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Alarm Lock DL1225/26D2 DL1225 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Turnpiece Exit Trim Satin Chrome

Item #: DL1225/26D2 by Alarm Lock

UPC #: 785026086411

See reviewsSee reviews

$561.81

/each
SAVE UP TO 56.18

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • 100 3-6 Digit PIN User Codes
  • Add keyless convenience to mechanical latch locks from Trilogy’s allmetal, vandal-resistant 12-button keypad and/or automatic timedscheduled locking/unlocking and audit trail with 1300 Series •
  • Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070*, 4730, 4900 Series and MS1850S* and MS1950S* Series latch locks
  • Finger Tip Programmable
  • Battery Operated for 100,000 Cycles
  • DL1200 supports 100 3-5 digit PIN user codes, fingertip programmable
  • DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
  • 1-1/4" Key Override
  • Fully Reversible
  • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C) • Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert
  • Compact styling 14-3/8”H x 1-5/8”D x 1-3/4”W
  • Key override mortise cylinder, 1-1/4” supplied. (Supports 1-1/8”, 1-1/4” and 1-3/8”). Also interchangeable cores supported (Corbin/ Russwin, Yale, Schlage, Medeco.)
  • Backsets 31/32”,1-1/8” and 1-1/2”; Stile thickness 1-3/4”
  • Non-handed; fully field-reversible
  • Two finishes US26D satin & 10B Durondic

Finish

Satin Chrome

Function

Entry

Series

DL Series

Design

Narrow Stile

Backset

1-1/2", 1-1/8", 1"

Package Volume

388.828125

Reader Technology

Keypad Only

Grade

Grade 1

Programmer

Optional

Cylinder Type

Conventional Cylinder

Package Qty

1

Package Height

2.25"

Door Thickness

1-3/4 In.

Number of users

100

Package Width

9.875"

Keypad Type

Electronic

Color Code

626/US26D

Lock Platform

Narrow Stile Trim Deadbolt

Software

Optional

Base Material

Brass or Bronze

Power

Lithium 3V

Package Length

17.5"

Keyway

Schlage C

Finish Description

Satin Chrome

Keyblank Grouping

SCHL-C-6-1

Product Type

Access Control

ADA Approved

False

Keying Charges

CCAM

Product Overview
DL1225 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Exit Trim with Turnpiece, for Adams Rite 4070, MS1850S, MS1950 Series Deadbolt, in US26D
This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
