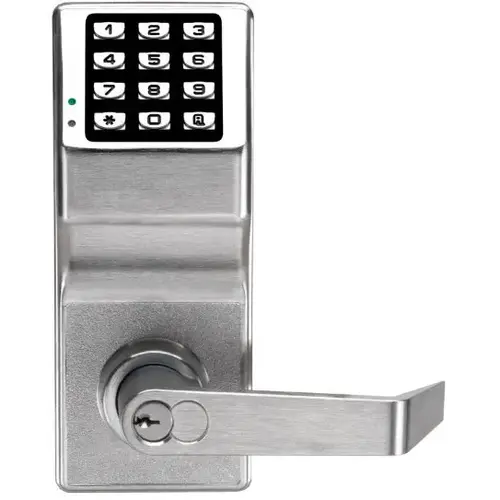

Alarm Lock DL2700IC US26D Trilogy Electronic Digital Lever Lock with Interchangeable Core for Best Prep Satin Chrome Finish
Item #: DL2700IC US26D by Alarm Lock
UPC #: 785026068981
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Constructed from Solid Steel
- More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes
- 5AA battery operated; 5 years battery life or 200,000 cycles, typ.
- Reversible Handing
- Multi-Level User Codes and One-Time Service Codes
- For outdoors, specify WP weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
- Free Passage, Group or Total Lock-Out Codes
- Typical 150,000 Cycle Battery Life
Finish
US26D Satin Chrome (626)
Function
DL27-Standard Key Override
Series
DL2 Series
Design
Digital Keypad
Strike
ANSI & T-Strike
Backset
2-3/4 Inch
Grade
ANSI/BHMA Grade 1
Power
Battery Pack
Color Code
626/US26D
Door Thickness
1-5/8 to 1-7/8 Inch
Cylinder Type
Interchangeable Core
Fire Rated
3 Hours {A}
Package Height
7.125"
Package Length
9.25"
Package Volume
576.6796875
Package Width
8.75"
Number of users
100
Keypad Type
Electronic
Latch Backset Dimension
2-3/4 In.
Lock Platform
Cylindrical Lock
Package Qty
1
Programmer
Optional
Reader Technology
Keypad Only
Software
Optional
Special Marks
Fire rated 3 Hours {A}
Strike Type
ASA; T Strike
Base Material
Brass or Bronze
Warranty
2 Year
Pack Size
1
Backset size (in.)
2-3/4
Certifications and Listings
UL Listed
Door Handing
Universal/Reversible
General Material
Zinc
Hardware Finish Family
Chrome
Maximum User Codes
100
Required Battery Type
AA
Security/ANSI Grade
ANSI Grade 1 (Best)
Lock Type
Keyed Entry
Finish Description
Satin Chrome
Lever Style
Straight
Product Type
Electronic Cylindrical Lock
UNSPSC
46171500
Cylinder
Less IC
Battery
5 AA
Application
Schools; Healthcare; Pharmacies; Rental Properties; Offices; Retail; Airports
Hand
Non-Handed
Handing
Non-Handed
Power Source
5 AA Batteries
Latch Throw
1/2 Inch
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
(5) AA Alkaline Batteries; Screws for Wood/Metal Jambs
Strike Size
1-1/8" x 2-3/4"; 1-1/4" x 4-7/8"
Standards
BHMA Certified; UL Listed; FCC Certified
Function Description
Clutch Mechanism Permits Turning Lever Without Retracting Latch, Reduces Stress on Lock Bodies and Spindle. Outside Lever Free Turning in Locked. Entering Access Code/Key Bypass/Remote Bypass Allow Lever to Retract Latch. Inside Lever Instant Egress
Front Size
1-1/8" x 2-1/4"
Function Family
Digital Lock
Features
Standard ANSI 161 Series Prep; Vandal-Proof All Metal Keypad; 100 Different Multi-Level User Codes: Master, 10 Managers, 90 Users, 3 Service Codes; Battery At 200000 Cycles; 2-Wire Remote Override; Programmable Relay
Manufacturer Parent
Napco Security Technologies
Sub-Series
EAC_Electronic_Cylindrical_Locks_alarm_lock_4
Product Overview
DL2700Trilogy Electronic Digital Locks
Electronic battery operated digital lock. Holds up to 100 user codes, 1 Master, 10 Manager codes & up to 3 one time user codes.
Features:- More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes.
- Uses 5 AA batteries; 5 years battery life or 200,000 cycles, typ.
- For outdoors, specify WP weatherproof models -31 ̊ to +151 ̊F (-35 ̊ to +66 ̊C)
- Fits 1 5/8" to 1 7/8"
- 2 3/4" (2 3/8" also available)
- 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
- UL Listed, fire rated 3 hours, 1/2" throw, reversible
- Non-handed
- 5 AA alkaline batteries (included)
- All metal, 12 button. All functions programmed through keypad
- Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
- BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
- 6 pin solid brass. SCY1 keyway furnished with all key override lock Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can he used with the HW620 tailpiece (supplied)
- Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schlage
- 10B - Oil Rubbed Dark Bronze
- 26D - Satin Chrome
