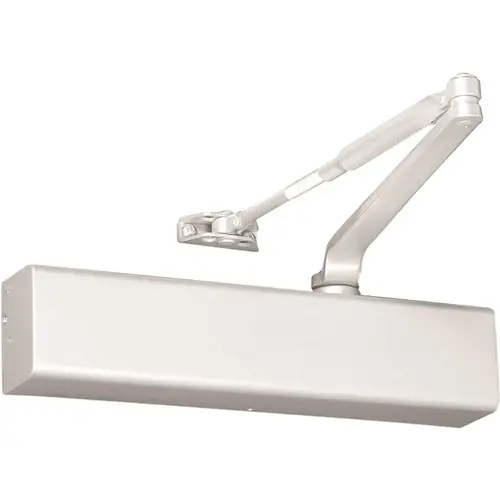

Yale Commercial 3301 689 3000 Series Door Closer Aluminum Painted

Item #: 3301 689 by Yale

UPC #: 840067681961

See reviewsSee reviews
In Stock

$396.65

/each
SAVE UP TO 39.66

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed (regular arm, top jamb and parallel arm mounting)
  • Non-handed
  • Staked valves
  • Rack & pinion design
  • 1-1/4" (32mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • Separate and independent, latch, sweep and backcheck intensity valves
  • 2-1/8" (54mm) projection (standard covers)

Finish

Aluminum Painted

Series

3000 Series

Type

Surface

Color

Aluminum Painted

Color Code

689/US28

Mounting Style

Tri Mount

Hold Open

Without Hold Open

Closer Size

Adj. 1 to 6

Mounting Location

Push or Pull Side

Package Qty

1

Grade

ANSI/BHMA Grade 1

Spring Size

1-6

Function

Tri-Packed Non-Hold Open Arm

Mount

Push or Pull Side

Finish Description

Aluminum Painted

Product Type

Door Closer/Holder/Stop

UNSPSC

31162800

ADA Compliant

YES

Finish Family

Aluminum

Product Material

Cast Aluminum

Closer Cover

Slim Plastic Cover

Standards

Grade 1 - ANSI/BHMA

Closer Arm Extension

2-1/8 Inch

Closer Arm Type

Regular Arm

Closer Fluid Temperature Range

Very High to as Low as -40°F

Closer Fluid

Closer Fluid

Closer Piston Diameter

1-1/4 Inch

Closer Pinion Diameter

5/8 Inch

Function Family

Non Hold Open Door Closer

Mounting Hole Size

3/4" x 12"

Fastener Type

Self Drilling Screws

Features

Exceeds 25 Million Cycles; Tri-Packed; Staked Valves; Rack and Pinion Design

Application

Commercial

Hand

Non-Handed

Handing

Non-Handed

Warranty

30 Year Limited Warranty

Mounting Type

Push or Pull Side

Door Thickness

1-3/4 inch

Door Size

42" (Interior); 36" (Exterior)

Maximum Door Opening

180°

Manufacturer Parent

Assa Abloy

Closer Hold-Open

false

Sub-Series

DC_Surface Mounted Closers_yale_commercial_7
