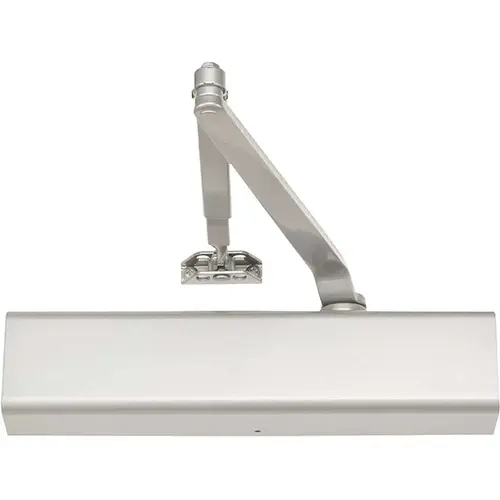

Yale Commercial 3501 689 3000 Series Door Closer Aluminum Painted
Item #: 3501 689 by Yale
UPC #: 840067681954
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Cast aluminum body
- Adjustable spring sizes 1 through 6
- Tri-packed (regular arm, top jamb and parallel arm mounting)
- Non-handed
- Staked valves
- Rack & pinion design
- 1-1/4" (32mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- Separate and independent, latch, sweep and backcheck intensity valves
- 2-1/8" (54mm) projection (standard covers)
Type
Surface
Color
Aluminum Painted
Color Code
689/US28
Mounting Style
Tri Mount
Hold Open
Without Hold Open
Closer Size
Adj. 1 to 6
Mounting Location
Push or Pull Side
Package Qty
1
Finish
Aluminum Painted
Grade
ANSI/BHMA Grade 1
Spring Size
1-6
Function
Tri-Packed Non-Hold Open Arm
Mount
Push or Pull Side
Finish Description
Aluminum Painted
Product Type
Door Closer/Holder/Stop
Series
3000 Series
UNSPSC
31162800
ADA Compliant
YES
Finish Family
Aluminum
Product Material
Cast Aluminum
Closer Cover
Full Plastic Cover
Standards
Grade 1 - ANSI/BHMA
Closer Arm Extension
2-1/8 Inch
Closer Arm Type
Regular Arm
Closer Fluid Temperature Range
Very High to as Low as -40°F
Closer Fluid
Closer Fluid
Closer Piston Diameter
1-1/4 Inch
Closer Pinion Diameter
5/8 Inch
Function Family
Non Hold Open Door Closer
Mounting Hole Size
3/4" x 12"
Fastener Type
Self Drilling Screws
Features
Exceeds 25 Million Cycles; Tri-Packed; Staked Valves; Rack and Pinion Design
Application
Commercial
Hand
Non-Handed
Handing
Non-Handed
Warranty
30 Year Limited Warranty
Mounting Type
Push or Pull Side
Door Thickness
1-3/4 inch
Door Size
42" (Interior); 36" (Exterior)
Maximum Door Opening
180°
Manufacturer Parent
Assa Abloy
Closer Hold-Open
false
Sub-Series
DC_Surface Mounted Closers_yale_commercial_9
