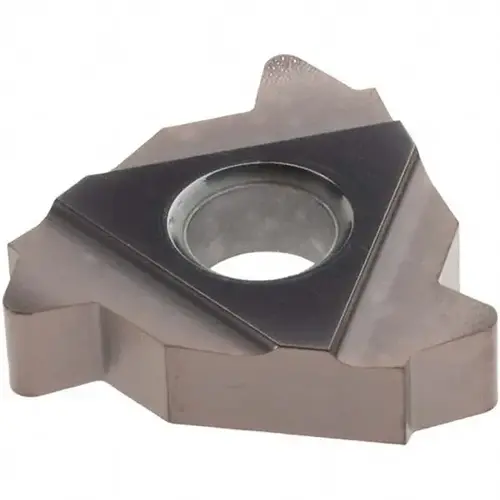

Laydown Threading Insert: L53428 AC50F, Solid Carbide Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tool-Flo 10478AC50FClick To Copy Laydown Threading Insert: L53428 AC50F, Solid Carbide Coated

Item #: 10478AC50F by Tool-Flo

See reviewsSee reviews
See reviews summary
In Stock

$50.92

/each
SAVE UP TO 5.09

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Thread Standard

API Rotary Shoulder Connections

Series

Laydown

Insert Material

Solid Carbide

Included Angle

60

Threads Per Inch

4

Thread Type

Internal

Number of Teeth Per Side

1

Manufacturer Grade

AC50F

Inscribed Circle (Inch)

5/8

Insert Size Code

53

Insert Style

L53

Inscribed Circle (Decimal Inch)

0.6250

Vendor Drop Ship

N

Thickness (Decimal Inch - 4 Decimals)

0.1890

Primary Workpiece Material Code

K

Primary Workpiece Material

Cast Iron

Material Grade

Micrograin

Corner Radius (Decimal Inch)

0.0380

Coating/Finish

Coated

Coating Process

PVD

Product Overview
Laydown Threading Insert: L53428 AC50F, Solid Carbide AlTiN Finish, Internal API Rotary Shoulder Connections Thread, 4 TPI, 5/8" Inscribed Circle, 0.189" Thick
