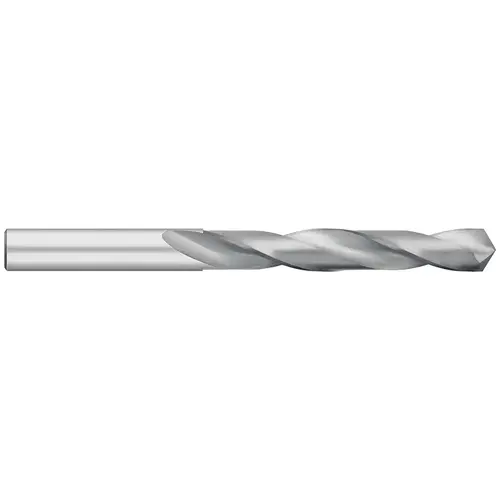

TITAN TC19023 Jobber Drill: 23/64" Dia, 118 deg Point, Solid Carbide Bright/Uncoated
Item #: TC19023 by TITAN
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Regular Spiral
Shank Type
Straight
Overall Length (mm)
107.95
Number of Flutes
2
Cutting Direction
Right Hand
Series
TC19
Point Type
Split Point
Drill Bit Material
Solid Carbide
Spiral Type
Regular
Tool Application
Drilling
Coating/Finish
Bright/Uncoated
Coolant Through
No
Double Margin
No
Drill Bit Grade
General Purpose
Drill Bit Size (Decimal Inch)
0.3594
Drill Bit Size (Inch)
23/64
Drill Bit Size Range (Decimal Inch)
0.3500 - 0.4000
Drill Point Angle
118 degrees
Flute By Diameter Ratio
8xD
Flute Length (Decimal Inch)
2.7500
Flute Length (Inch)
2-3/4
Flute Length (mm)
69.85
Maximum Drilling Depth (Decimal Inch)
2.7500
Maximum Drilling Depth (Inch)
2-3/4
Number of Flats
0
Overall Length (Decimal Inch)
4.2500
Overall Length (Inch)
4-1/4
Primary Workpiece Material
Aluminum & Non-Ferrous
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.3594
Shank Diameter (Inch)
23/64
Shank Length (Decimal Inch)
1.5000
Shank Length (Inch)
1-1/2
Tool Performance
General Purpose
UNSPSC Code
23241634
Vendor Drop Ship
N
Drill Bit Diameter Tolerance
-0.0005 to +0.0000
Product Overview
Jobber Drill: 23/64" Dia, 118 deg Point, Solid Carbide Bright/Uncoated, 4-1/4" OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series TC19
