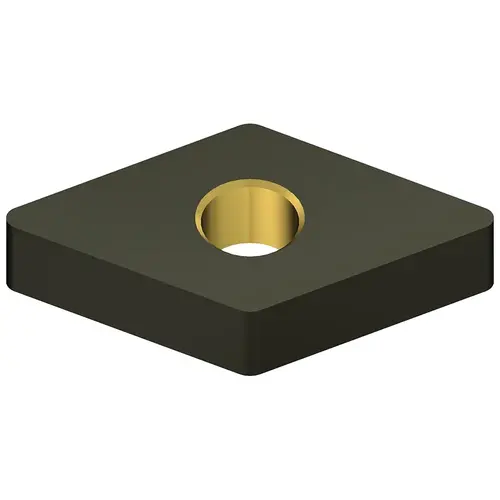

DNMA431-AC4010K Carbide Turning Insert Al2O3

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 19T1231Click To Copy DNMA431-AC4010K Carbide Turning Insert Al2O3

Item #: 19T1231 by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$25.27

/each
SAVE UP TO 2.53

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6102

Insert Thickness (Decimal Inch)

0.1874

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

15.50

Clearance Code

N

Insert Shape Code

D

Chip Breaker

A

Insert Style

DNMA

Insert Size Code

431

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2032

Relief Angle

0

Inscribed Circle (Inch)

1/2

Manufacturer Grade

AC4010K

Length Range (Decimal Inch)

0.6000 - 0.6500

Iso Code

DNMA150404

Included Angle

55.0

Insert Material

Solid Carbide

Series

AC4000K

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

DNMA431-AC4010K

Vendor Drop Ship

N

Product Overview
DNMA431-AC4010K Carbide Turning Insert Al2O3/TiCN Finish, 15.5mm Long, 1/2" Inscribed Circle, 0.0157" Corner Radius, 0.1874" Thick, 55 degree Included Angle, Series AC4000K
