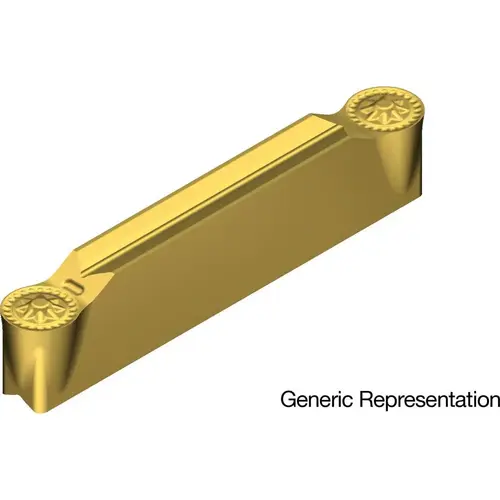

Grooving Insert: GCMN3125RG AC425K, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 186PW0V-XCP5 Grooving Insert: GCMN3125RG AC425K, Solid Carbide - pack of 5

Item #: 186PW0V-XCP5 by Sumitomo

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Height (mm)

3.81

Maximum Corner Radius (Decimal Inch)

0.0625

Iso Code

ISO 13399

Cutting Width (mm)

3.18

Corner Radius (mm)

1.59

Maximum Depth of Cut (Inch)

1

Maximum Depth Of Cut Range (mm)

20.00+

Insert Seat Size

3

Inscribed Circle (mm)

21.11

Maximum Depth Of Cut Range (Decimal Inch)

1.0000+

Manufacturer Grade

AC425K

Minimum Corner Radius (Decimal Inch)

0.0625

Cutting Height (Decimal Inch)

0.1500

Maximum Depth of Cut (mm)

25.40

Insert Size Code

3125

Insert Style

GCMN

Chip Breaker

RG

Full Radius

Yes

Rake Angle

5.00

Corner Radius (Inch)

1/16

Inscribed Circle (Decimal Inch)

0.8310

Insert Hand

Neutral

Single Or Double End

Double

Rake

Positive

Overall Width (mm)

3.18

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

1.0000

Lead Angle

0

Cutting Width (Inch)

1/8

Cutting Width (Decimal Inch)

0.1250

Vendor Drop Ship

Y

Primary Workpiece Material Code

K

Primary Workpiece Material

Cast Iron

Overall Width (Inch)

1/8

Overall Width (Decimal Inch - 4 Decimals)

0.1250

Overall Length (Decimal Inch)

0.8310

Corner Radius (Decimal Inch)

0.0625

Coating/Finish

Coated

Coating Process

CVD

Series

GND

Insert Material

Solid Carbide

Standards

ANSI

ANSI Code

GCMN3125-RG

Product Overview
Grooving Insert: GCMN3125RG AC425K, Solid Carbide Coated, Neutral, 3.18 mm Cutting Width, 25.4 mm Max Depth, Series GND
