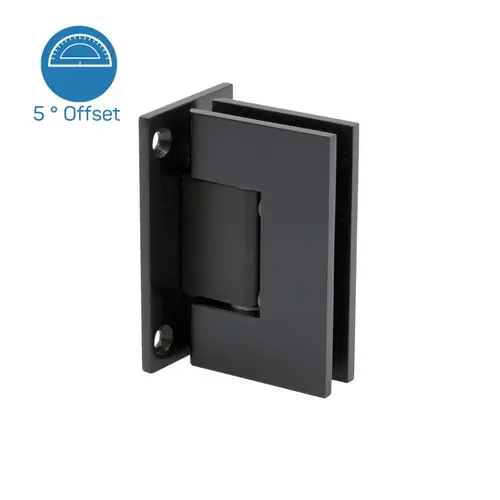

5 Degree Wall to Glass Full Back Plate Hinge Matte Black

Roll over image to zoom in

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

SGS IMP-1105-MBL 5 Degree Wall to Glass Full Back Plate Hinge Matte Black

Item #: IMP-1105-MBL by Structure Glass Solutions

See reviews See reviews
In Stock

$38.85

/each
SAVE UP TO 3.89

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Standard Duty Wall Mount Full Plate w/5° Pin Finish: Matte Black

Use Monolithic Tempered Glass

Available in Several Beautiful Finishes

5 Year Warranty



SGS Imperial 5° Preset Pin Hinges can accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. Made of solid brass with all moving parts (pins and springs) in stainless steel.

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).



SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass

Construction: Solid Brass

Hinge Swings: 90 degrees in and 90 degrees Out

Closing Type: Self-Centering when within 15 degrees of Closed Position

Cut-Out Required Includes: Gaskets and Screws
