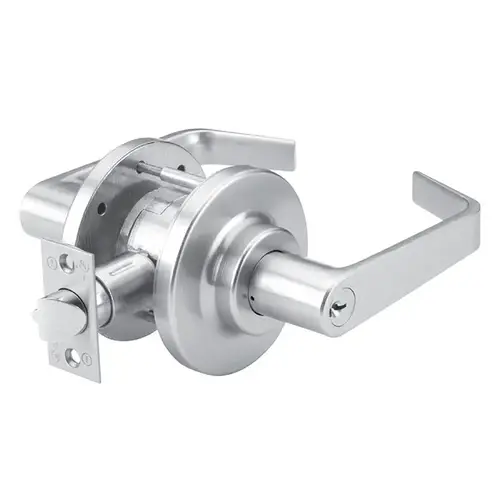

Storeroom Cylindrical Lever Lock with LR Lever and E Rose Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

DORMA CL780DLRE626 Storeroom Cylindrical Lever Lock with LR Lever and E Rose Satin Chrome Finish

Item #: CL780DLRE626 by Dorma

See reviewsSee reviews
In Stock

$275.80

/each
SAVE UP TO 27.58

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Strike Size

1-1/4" x 4-7/8"

Strike Number

5001

Manufacturer Parent

DormaKaba

Knob/Lever Size

4-5/8 Inch

Latch Number

17252

Finish Description

Satin Chrome

Latch Throw

1/2 Inch

Function

80-Storeroom

Latch Type

Deadlocking

Function Description

Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.

ANSI Function

F86

Grade

ANSI/BHMA Grade 2

Sub-Series

CL_Cylindrical_Locks_Dorma_66

Lever Style Family

Straight Return Lever

ADA Compliant

YES

Keyblank Grouping

DORM_SCHL_C_6_1

Front Size

1-1/8 Inch

Cylinder Type

Conventional Cylinder

Lever Length-Inches

4.625 Inch

Handle Type

Lever

Door Cross Bore

2.125 Inch

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-3/16 Inch Lip, Square Corner

Application

Hotels; Apartments; Churches; Municipal Buildings; Retail Complexes; Offices; Warehouses

Keying Charges

CCAM

Function Family

Storeroom

Standards

ANSI/BHMA A156.2; UL and CUL Listed

Rose Diameter

3-7/16 Inch

Cylinder Material

Brass

Lever Style

LR-Lever

Latch bolt size

2-3/8 Inch

Product Type

Cylindrical Lock

Rose/Escutcheon Trim

E-Stepped Rose

Product Projection

2-9/16 Inch

Features

High Performance Cylindrical Chassis; Key-In-Lever Lock Through-Bolted

Color Code

626/US26D

Strike Type

ANSI Strike

Latch Corner

Square

Backset

2-3/4 Inch

Warranty

5 year limited

Keyway

Schlage C

Series

CL700 Series

Included Components

(2) Keys; Special Spring Assemblies

Cylinder Type Used

Conventional

Strike Lip

1-3/16 Inch

Finish Family

Satin Chrome
