Stenner Pumps S7G45MFL1B2SUAA Classic 45 Tank System with Fixed Chemical Injection Pump; 1/4 Inch, 3 gpd, 7.5 gal, Polycarbonate, UV Gray, 220 V-60 Hz, 0-25 psi
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

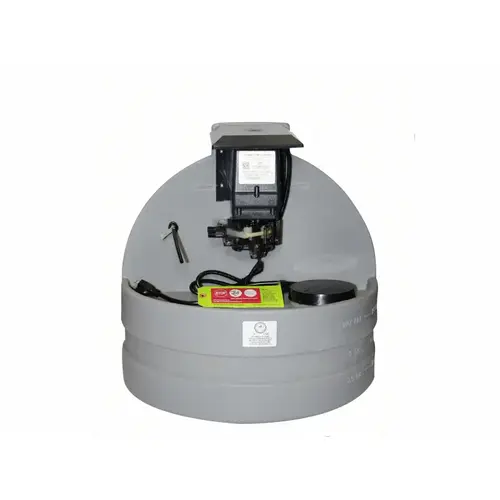

Stenner Pumps S7G45MFL1B2SUAA 220v 3gpd Fix .25" 1head Pump W/ 7.5gal Tank UV Gray
Item #: S7G45MFL1B2SUAA by STENNER PUMP COMPANY
UPC #: 840034734355
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 3-point roller design assists in anti-siphon protection
- The pump is built with three detachable components - the motor, feed rate control and the pump head that can be separated without tools
- Continuous duty cycle
- Shaded pole, Class B motor
- HDPE pump head rollers
- Oil impregnated sintered bronze roller bushing
- SJTOW power cord
- Pellathane® CV Duckbill with Versilon™ tube
- Polypropylene pump head latches
- Stainless steel fasteners
- PP or type 1 rigid PVC connecting nuts
- Pump head requires no valves, allows for easy maintenance
- NSF listed PP or type 1 rigid PVC body with type 1 rigid PVC cap suction line strainer
- UV black tubing
- Self priming against maximum working pressure, foot valve not required
- Pump does not lose prime or vapor lock
- Pumps off-gassing solutions and can run dry
- Output volume is not affected by back pressure
- Injection check valve included with models rated up to 100 psi (6.9 bar)
- Easy and fast tube replacement without tools with the QuickPro® pump head
- Pump tubes and pump heads interchange between models
Dimension
8 Inch L x 5.3 Inch W x 6 Inch H
Application
For constant pressure (variable speed) well pumps, poultry and livestock houses, irrigation and systems with demand based backup wells
Color
UV Gray
Shipping Dimensions
21.00x23.00x23.00
Includes
Accessory Kit
Brand
Stenner Pumps
Phase
1-Phase
Department
FEEDERS | CHLORINATORS | SANTIZERS
AmperageRating
0.9 A
CordType
SJTOW, NEMA 6/15
FlowRate
3 gpd
FrequencyRating
60 Hz
HousingMaterial
Polycarbonate
HP
1/30
Item
Tank System with Fixed Chemical Injection Pump
MaximumSuctionLift
25 ft Vertical Lift
MotorRPM
26
OperatingTemperature
125 deg F
PressureRating
0-25 psi
StandardsApprovals
UL Listed, CSA Certified, WQA Certified according to ANSI/NSF 61, Conforms to ANSI/NSF 50
SuctionSize
1/4 Inch
TankCapacity
7.5 gal
VoltageRating
220 V
Product Overview
Stenner Pumps S7G45MFL1B2SUAA Classic 45 Tank System with Fixed Chemical Injection Pump; 1/4 Inch, 3 gpd, 7.5 gal, Polycarbonate, UV Gray, 220 V-60 Hz, 0-25 psi
